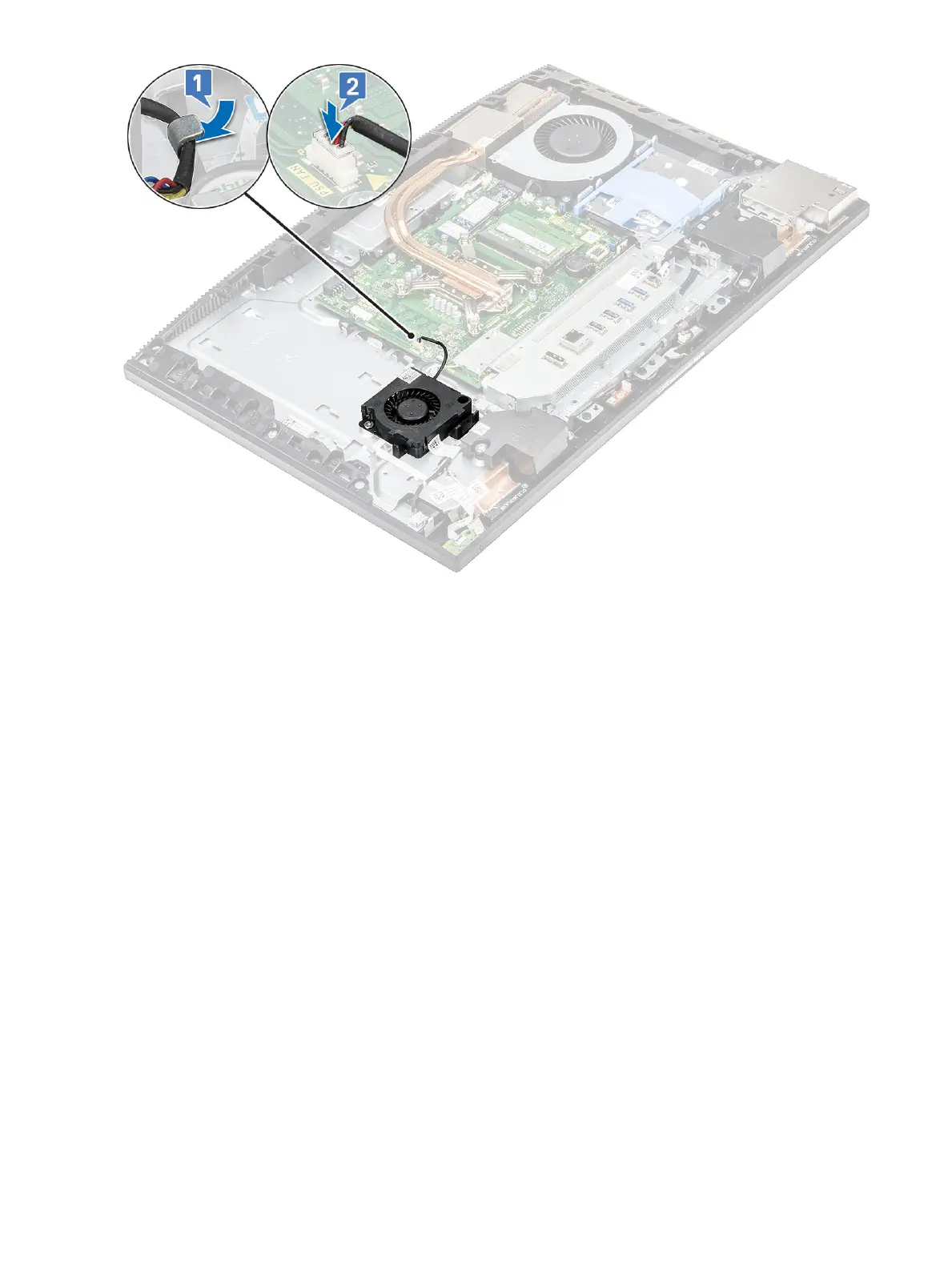

3 Install the following components:
a Base cover
b System board shield
c Back cover
d Stand
4 Follow the procedure in After working inside your computer.
Input and Output bracket
Removing the Input and Output bracket
1 Follow the procedure in Before working inside your computer.
2 Remove the following components:
a Stand
b Back cover
c System board shield
d Base cover
3 Release the PSU cable to remove the Input and Output (I/O) bracket.
4 To release the PSU cable:
a Remove the single (M3x5) screw securing the power supply socket to the Input and Output (I/O) bracket [1].
b Slide the power supply socket away to remove it from the system [2].
c Unroute the power supply cables from the retention clips in the chassis [3].
Removing and Installing components
67
