Installing the pop-up camera
1 Follow the procedure in After working inside your computer.
2 To install the pop-up camera module:

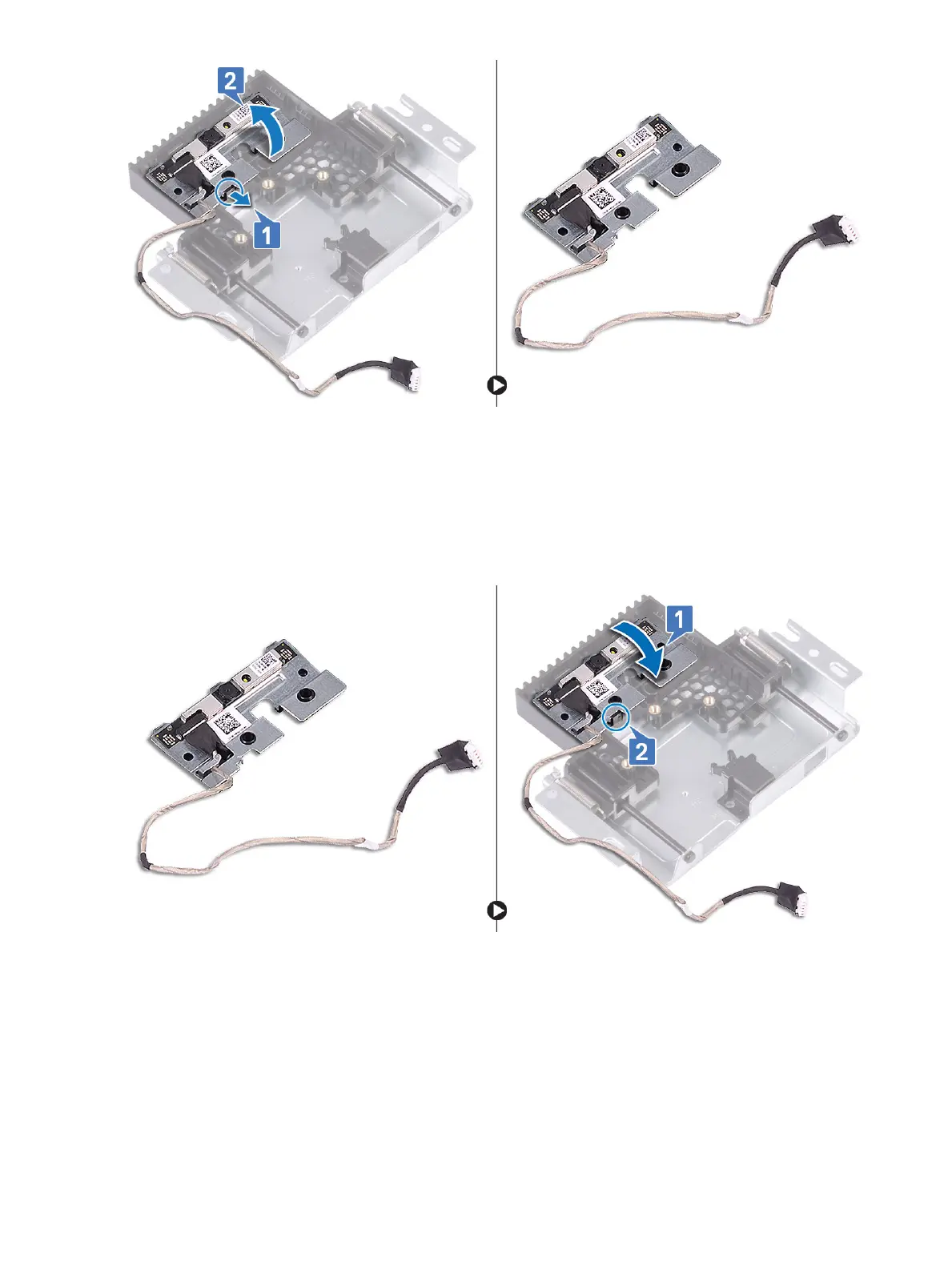

a Replace the camera module along with the camera cable in the slot on the pop-up camera assembly [1].
b Snap the pop-up camera assembly in place to the tab [2].
3 To install the pop-up camera bezel:
a Align the screw slots on the pop-up camera bezel with the screw slots on the pop-up camera assembly [1].
b Replace the three screws (M3x5) that secure the pop-up camera bezel to the pop-up camera assembly [2].
c To retract the pop-up camera, press the top of the pop-up camera assembly[3].
