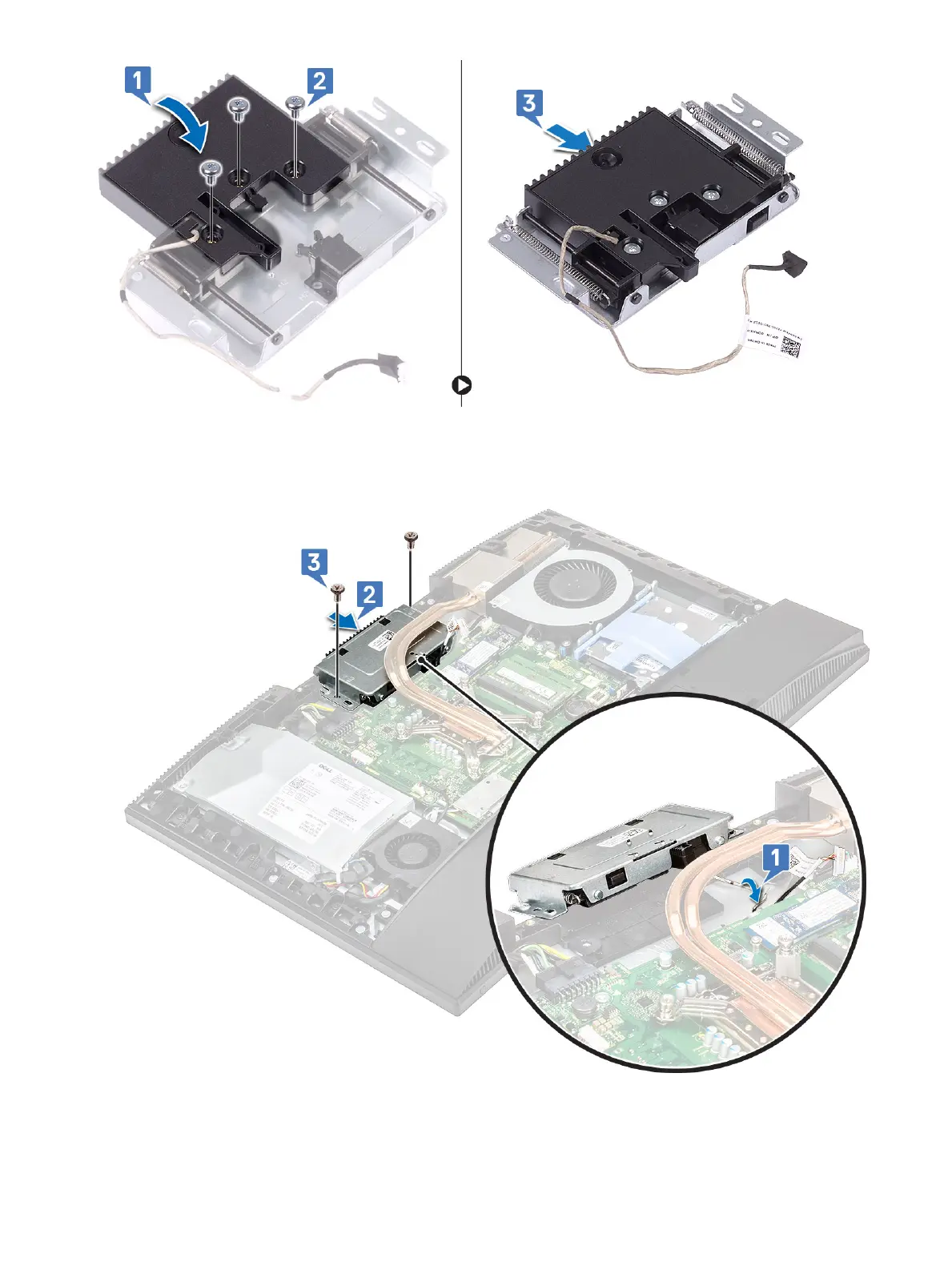

4 To install the pop-up camera assembly:
a Route the camera cable through to the routing channel [1].
b Align and place the pop-up camera assembly on the display panel base [2].
c Replace the two screws (M3x5) that secure the pop-up camera assembly to the middle frame [3].
5 To replace the camera assembly cover:
a Connect the camera cable to the system board [1].
b Align and place the pop-up camera assembly cover on the middle frame [2].
