Installing the microphones

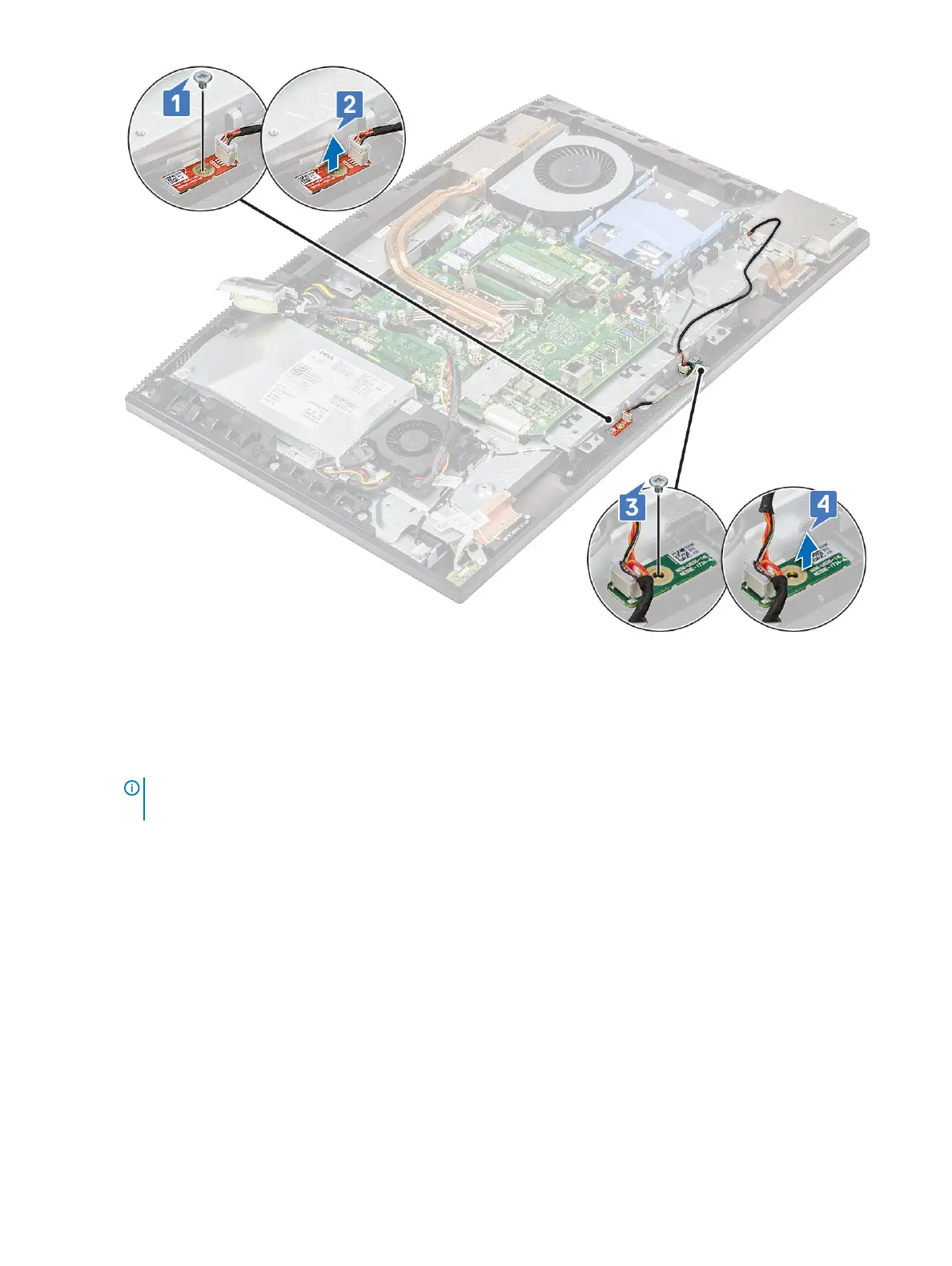

1 To install the microphone and cable:
a Align and place the microphone modules to the slots on the middle frame [1,3].
NOTE
: Match the numbers on the microphone modules to the numbers on the middle frame while placing the
microphone modules on the middle frame.
b Replace the two screws (M2x2.5) that secure the microphone modules to the middle frame [4,2].
Removing and Installing components
85
