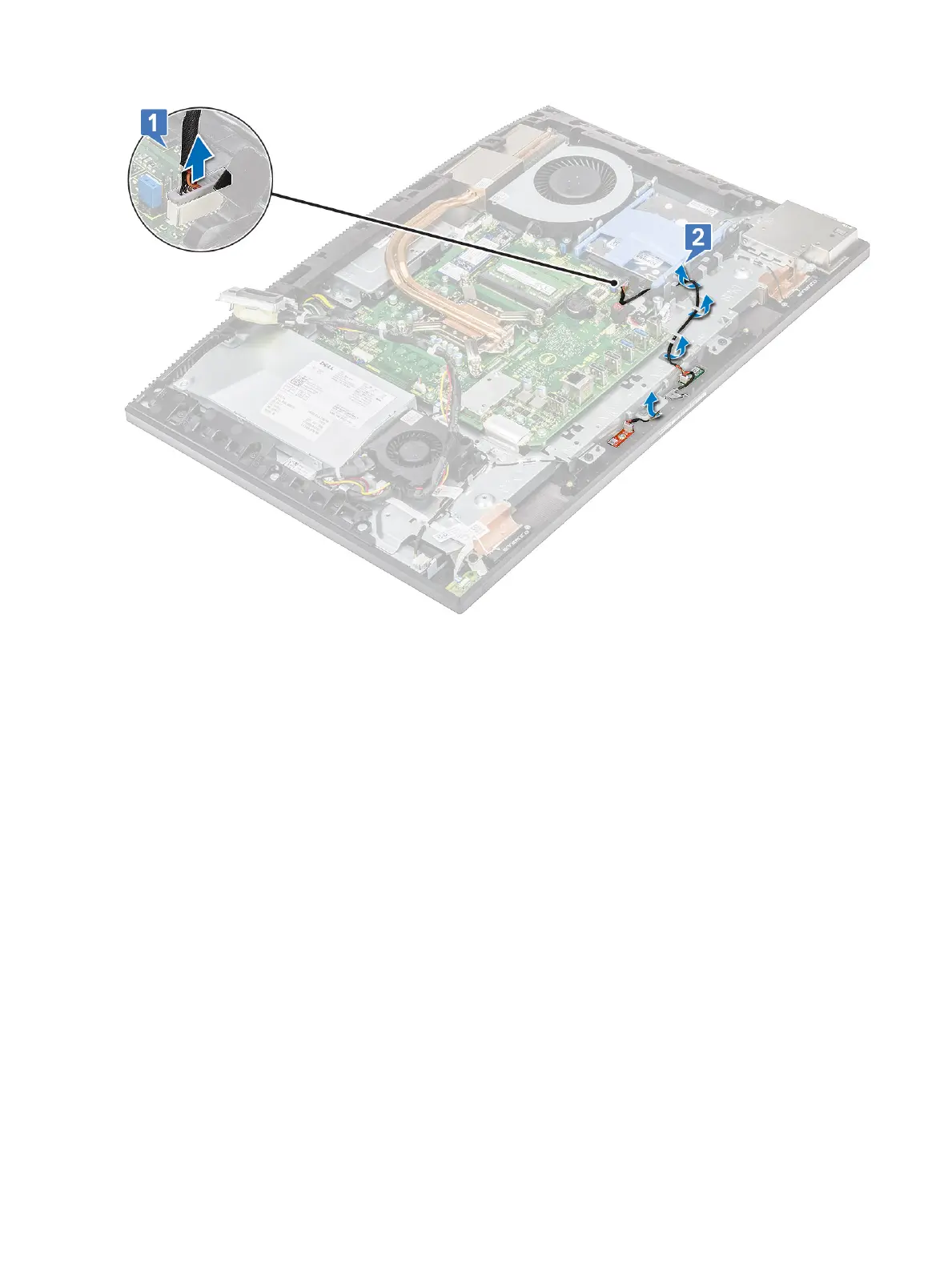

a Disconnect the microphone module cable from the system board [1].
b Unroute the microphone module cable from the routing guides on the display assembly base [2].
c Remove the two screws (M2x2.5) that secure the microphone modules to the middle frame [1,3].
d Lift the microphone modules o the slots on the middle frame [2,4].
