4 Install the following components:
a System board shield
b Back cover
c Stand
5 Follow the procedure in After working inside your computer.
Solid State Drive -SSD
Removing the SSD card
1 Follow the procedure in Before working inside your computer.
2 Remove the following components:
a Stand
b Back cover
c System board shield

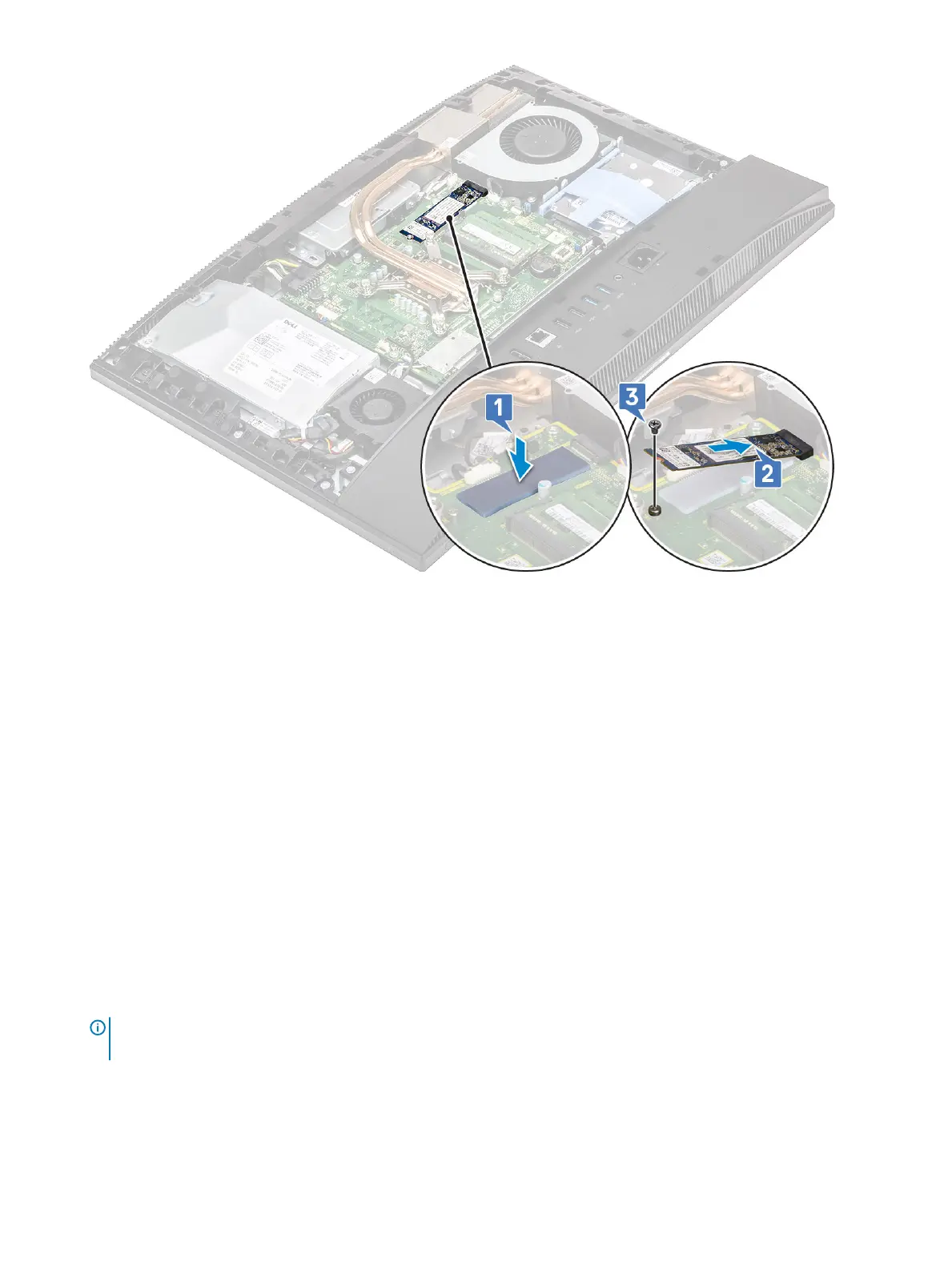

3 Remove the screw (M2x2.5) that secures the SSD card to the system board [1].
4 Slide and remove the SSD card from the card slot on the system board [2].
5 Remove the thermal pad [3].
NOTE
: M.2 PCIe SSD with capacity over 512G (512G/1TB/2TB) must be installed with a thermal pad. M.2 SATA SSD and
M.2 PCIe SSD with 128G and 256G do not require a thermal pad.
Removing and Installing components 33
