Installing the Input and Output bracket
1 To install the Input and Output bracket (I/O) bracket:

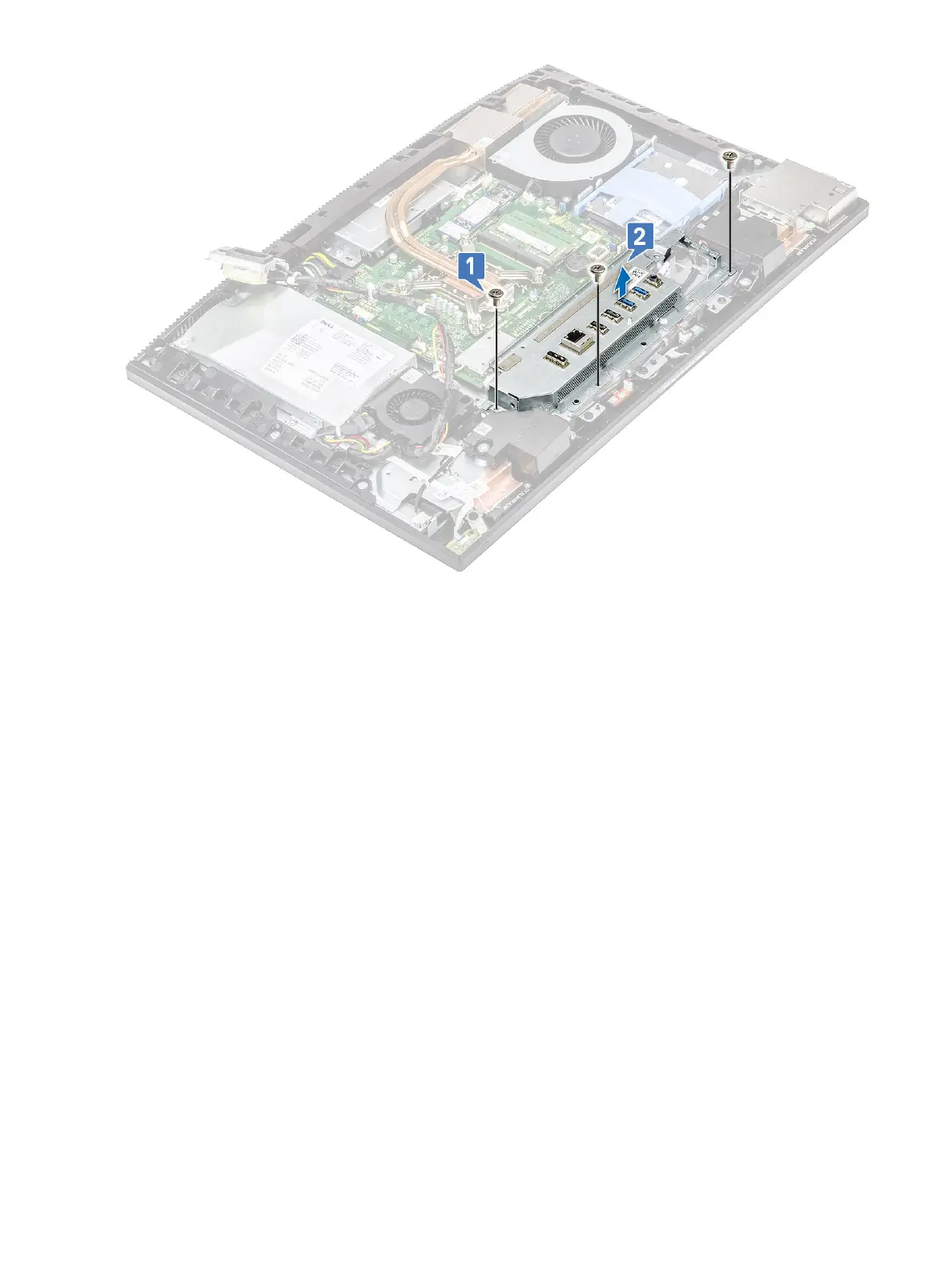

a Align the slots on the Input and Output bracket (I/O) bracket with the ports on the system board [1].
b Replace the three screws (M3x5) that secure the I/O bracket to the display assembly base [2].
