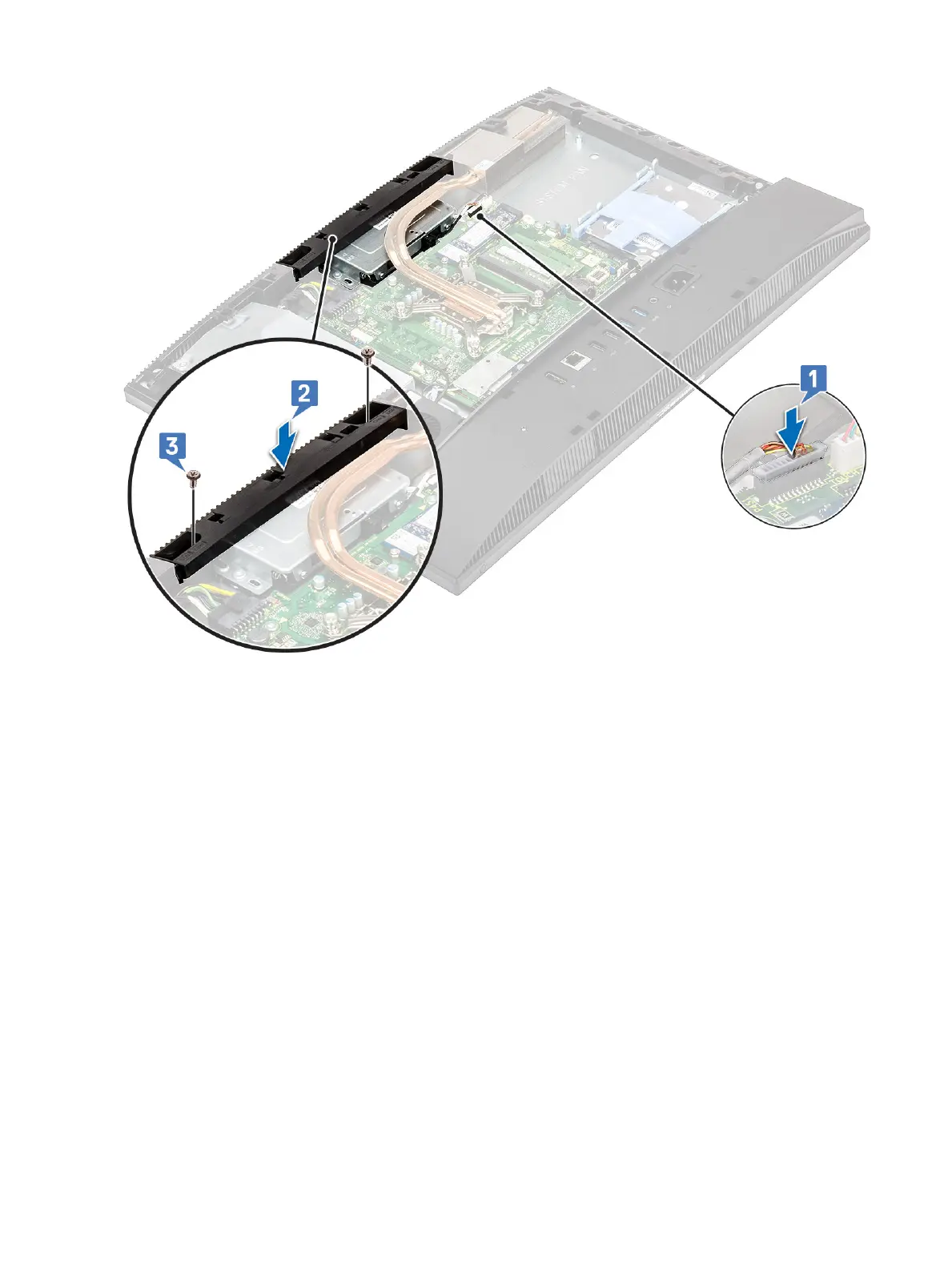

c Replace the two screws (M3x5) that secure the camera assembly cover to the middle frame [3].
6 Install the following components:
a System board shield
b Back cover
c Stand
Coin cell battery
Removing the coin cell battery
1 Follow the procedure in Before working inside your computer.
2 Remove the following components:
a Stand
b Back cover
c System board shield
3 Press the tab on the coin cell battery socket until the coin cell battery pops up [1].
4 Lift the coin cell battery out of the coin cell battery socket [2].
52
Removing and Installing components
