Installing the power button board
1 To install the speakers:

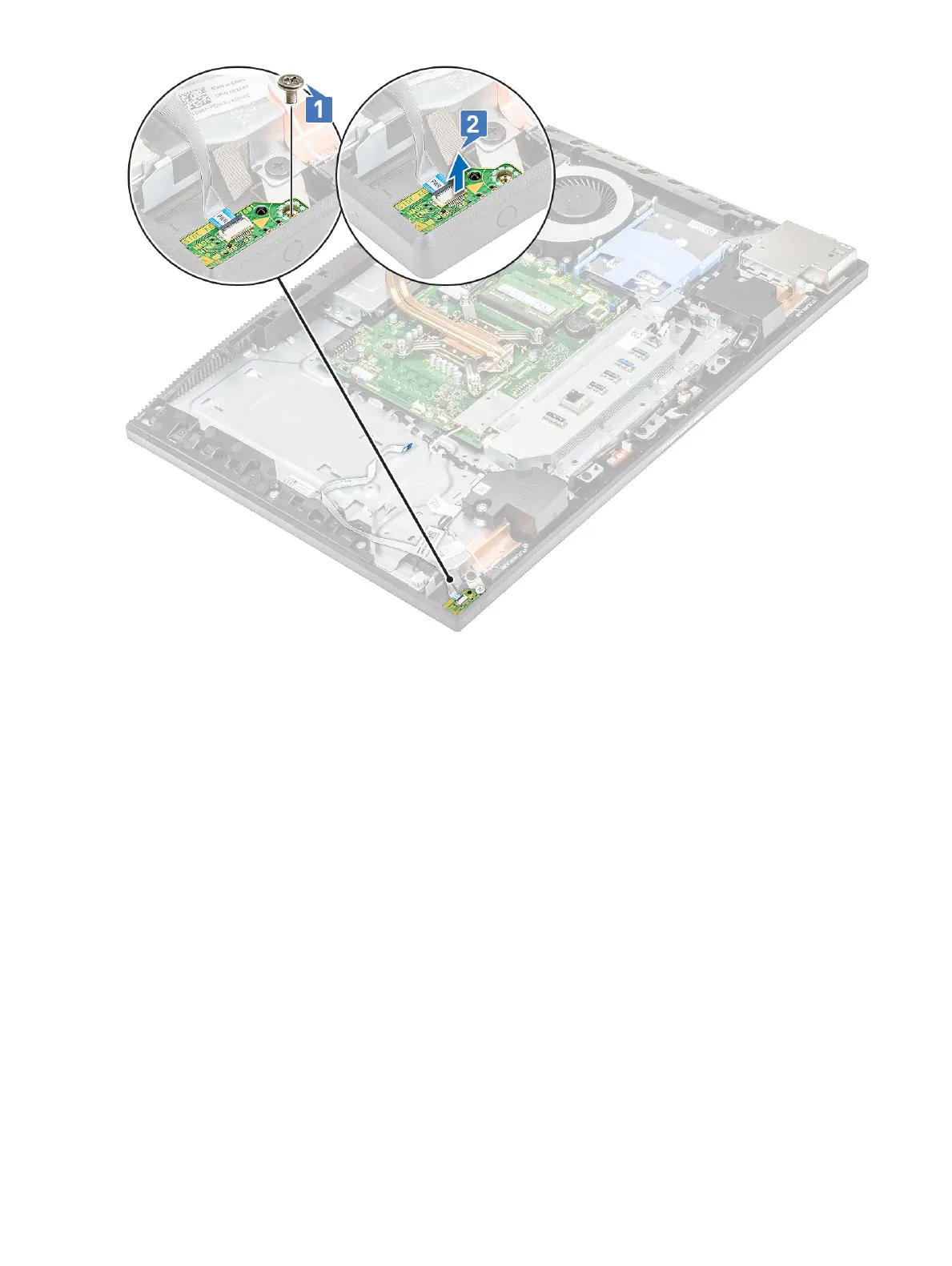

a Using the alignment post, place the power button board into its slot on the middle frame [1].
b Replace the single screw (M3x5) that secures the power button board to the middle frame [2].
