Dell OptiPlex 5260 - Page 80

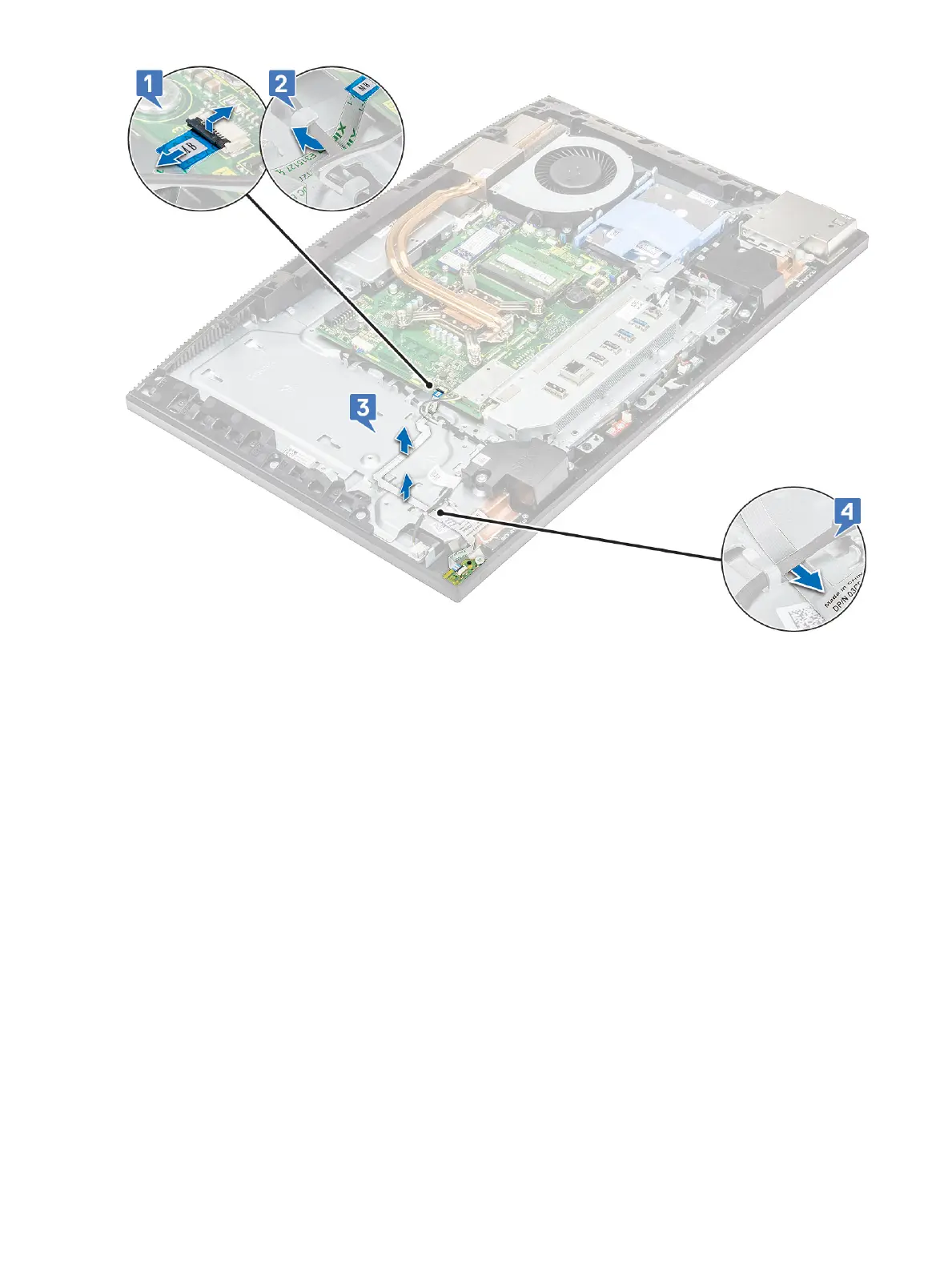

e Remove the single screw (M3x5) that secures the power button board to the middle frame [1].
f Lift the power-button board, along with its cable, o the middle frame [2].
80
Removing and Installing components
