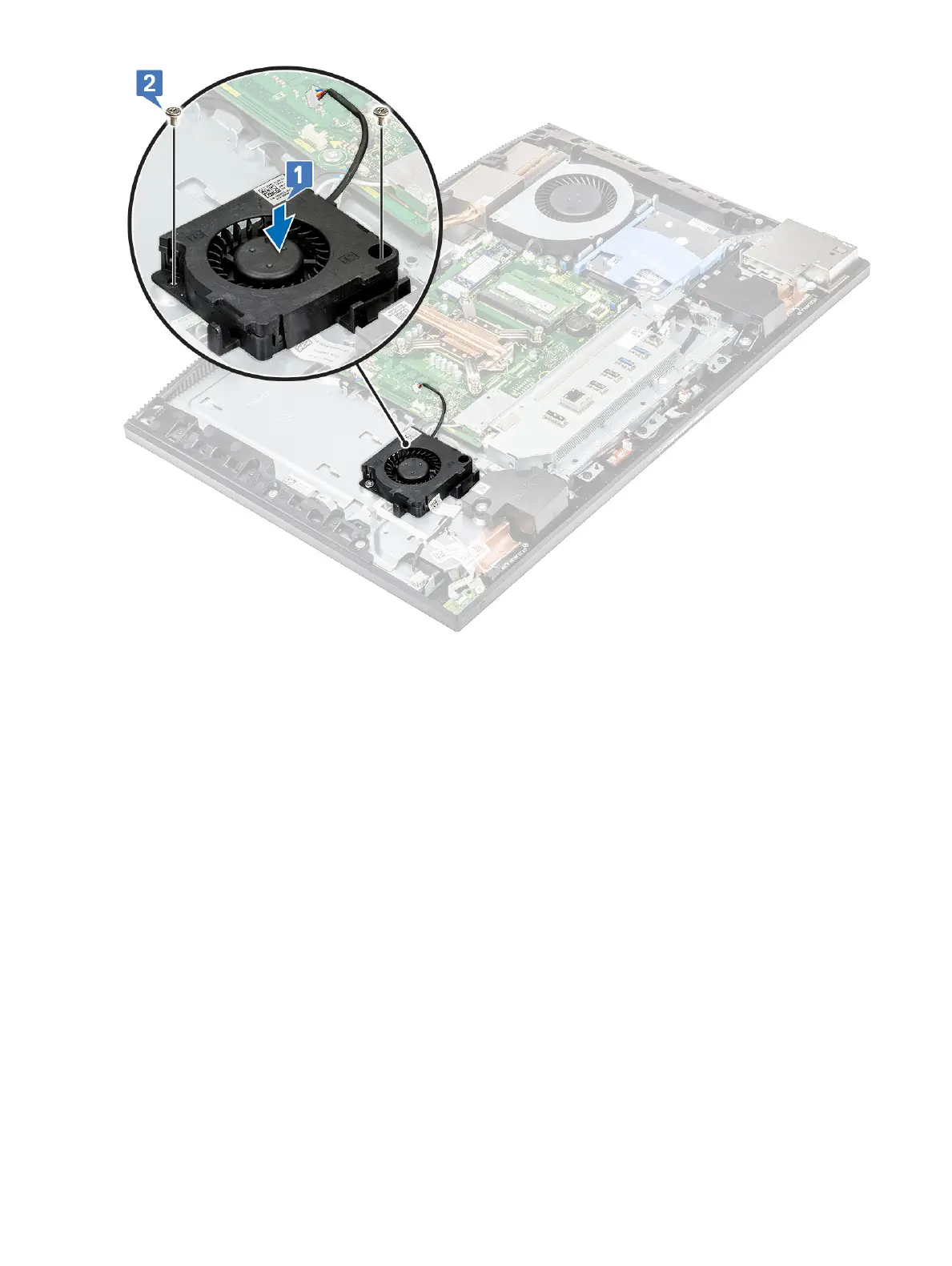

2 To replace the PSU Fan cable:
a Route the PSU fan cable through the retention tab [1].
b Connect the PSU fan cable to the socket on the system board [2].
c Route the power supply cables to the retention clips on the PSU fan.
