Dell PowerConnect 55xx Systems User Guide 313
Views can be attached to groups in the Access Control pages.
To create an SNMP view:
1
Click System > SNMP > View Settings in the tree view to display the
View Settings: Summary page.

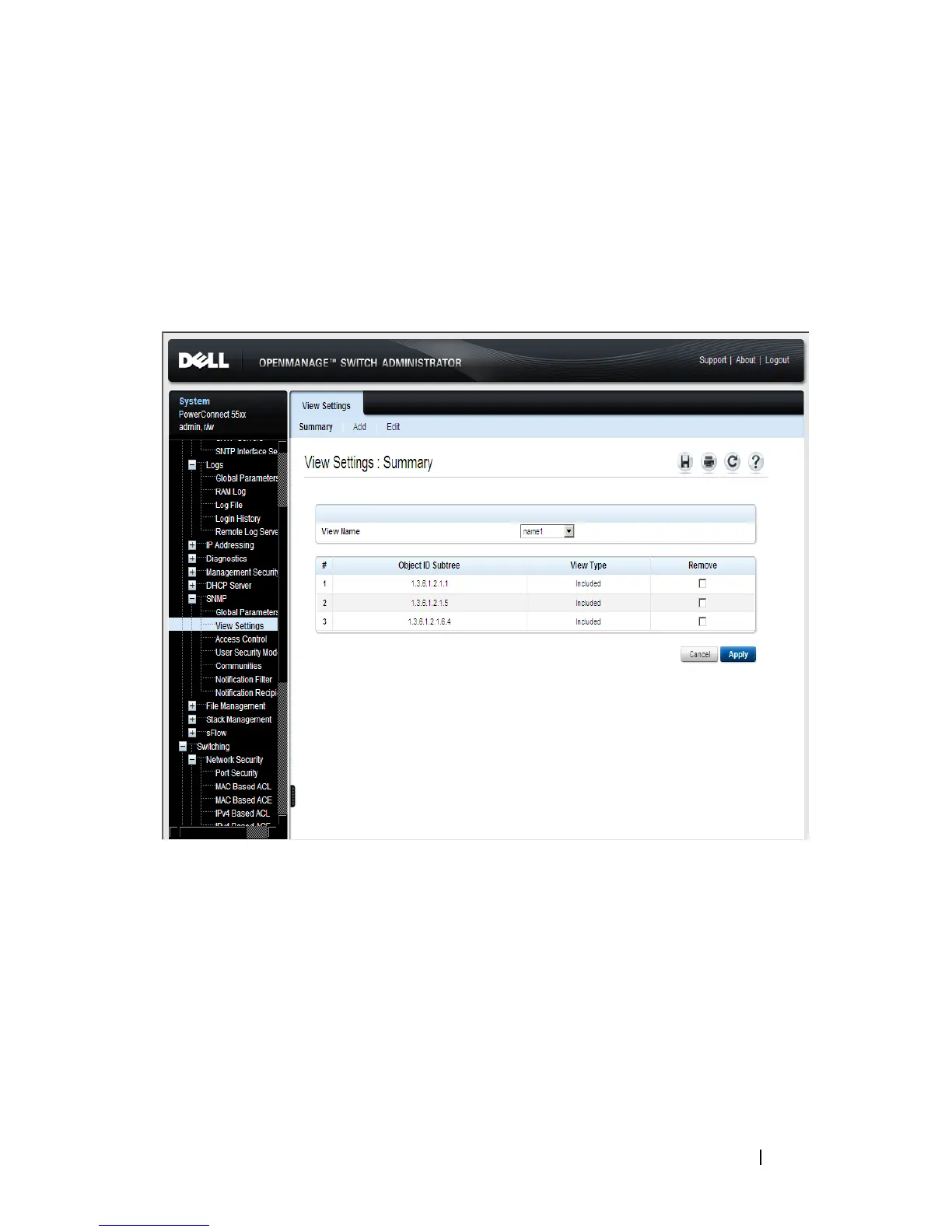

Figure 9-48. View Setting: Summary
2 Select a view name. Its subtrees are displayed.
3 To remove a subtree from an SNMP view, click Remove . The subtrees of
the default views (Default, DefaultSuper) cannot be changed.
4 To add a new view, click Add , and enter a new View Name (1-30
Characters)
.
5 To complete the definition of the view, click Edit , and select a View Name
to modify. Enter the fields:
–
New Object ID Subtree — Check to specify the device feature OID
included or excluded in the selected SNMP view.
