Dell PowerConnect 55xx Systems User Guide 517
Bridge Multicast Forward All
Use the Bridge Multicast Forward All page to attach ports or LAGs to a device
that is attached to a neighboring Multicast router/switch. After IGMP
Snooping is enabled, Multicast packets are forwarded to the appropriate port
or VLAN.
To attach interfaces to a Multicast service:
1
Click Switching > Multicast Support > Bridge Multicast Forward All in
the tree view to display the
Bridge Multicast Forward All page.

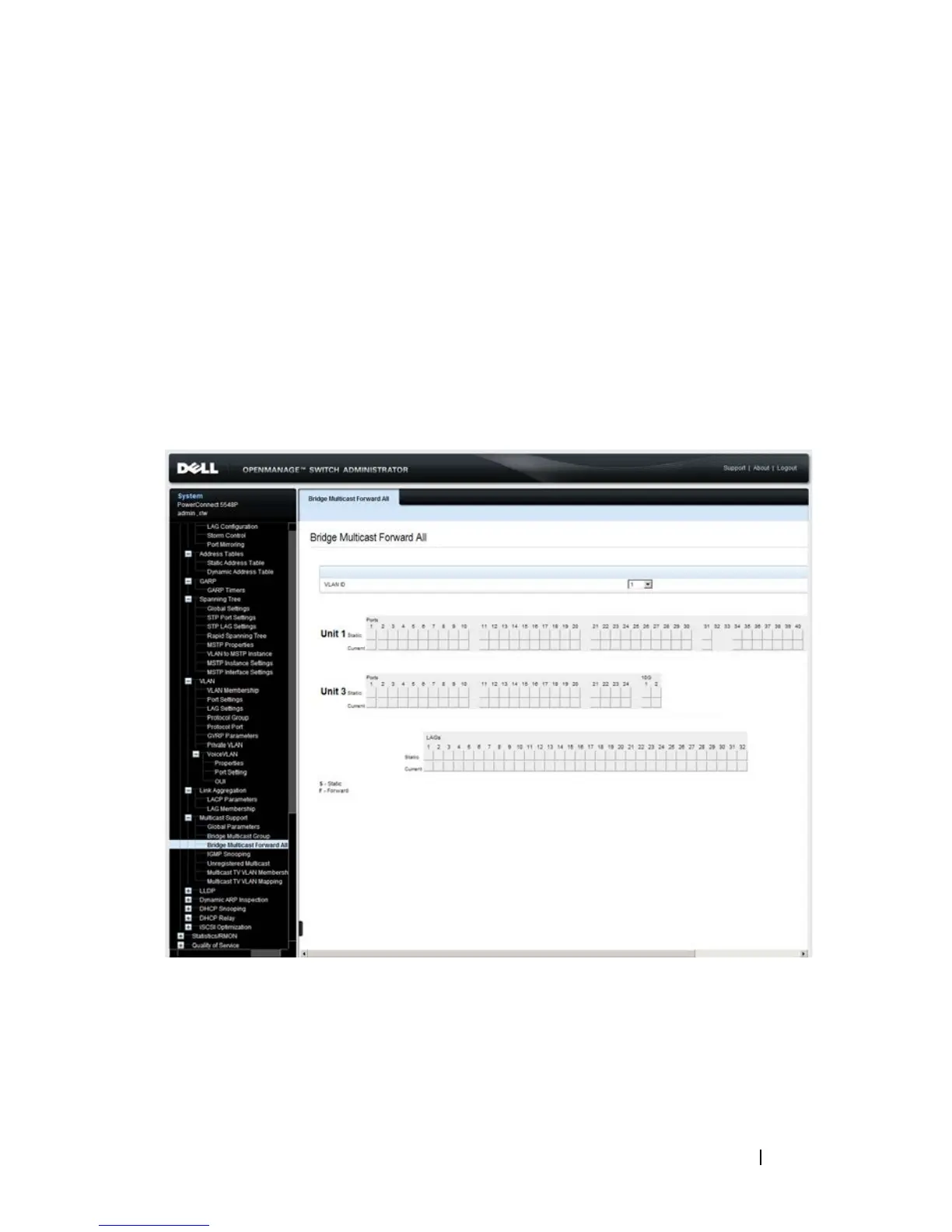

Figure 16-3. Bridge Multicast Forward All
2 Select a unit/VLAN and click on the ports and LAGs to be attached to the
Multicast service. Toggle a port to
S to join the port to the selected
Multicast group as a static port. Toggle a port to
F to add it as a Forbidden
port.
Two rows of ports and LAGs are displayed:
