Dell PowerConnect 55xx Systems User Guide 403
LAG Configuration
Use the LAG Configuration pages to configure LAGs. The device supports
up to 32 LAGs per system, meaning for all units in the stack. For information
about Link Aggregated Groups (LAGs) and assigning ports to LAGs, see
"Link Aggregation" on page 500.
To configure LAGs:
1
Click
Switching
>
Ports
>
LAG Configuration
in the tree view to display
the
LAG Configuration: Summary
page.

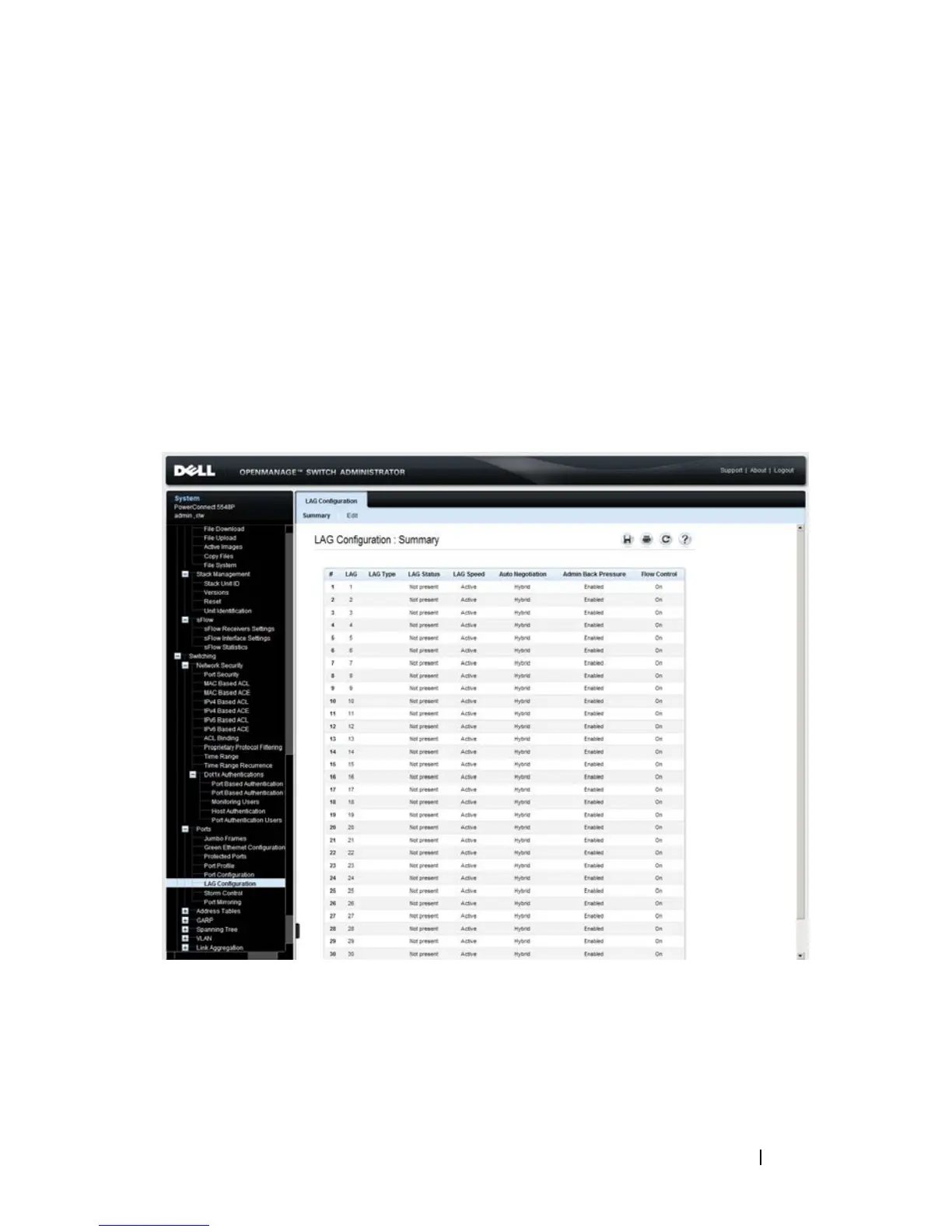

Figure 10-6. LAG Configuration: Summary
The LAG parameters are displayed.
2
To configure a LAG, click
Edit
.
3
Select the LAG and enter the fields:
–
LAG Mode
— Select the LAG mode. The possible options are:
