Dell PowerConnect 55xx Systems User Guide 543
LLDP MED Port Settings
To assign MED network policies to ports:
1
Click System > LLDP > MED Port Settings in the tree view to display
the
MED Port Settings: Summary page.

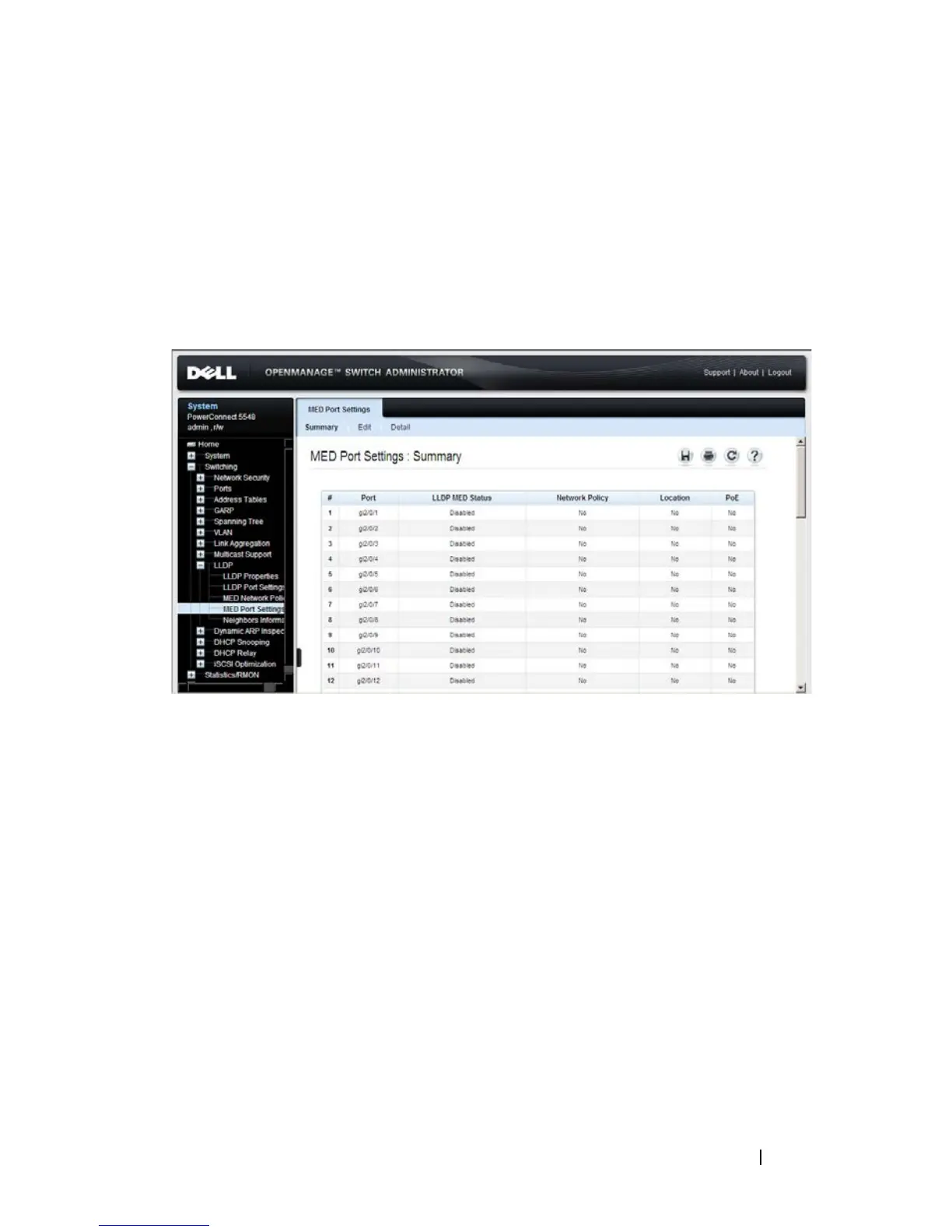

Figure 17-4. MED Port Settings: Summary
2 Select the unit in the stack. All ports on that unit are displayed along with
the following fields:
–
LLDP MED Status — Specifies if LLDP-MED is enabled on the
selected port.
–
Network Policy — Specifies whether a network policy is assigned to
the port.
–
Location — Specifies whether the location is advertised.
–
PoE — Specifies whether PoE is enabled on the port.
3 To modify network policies on a port, click Edit .
4 Select the port to be configured, and enter the fields for the port:
–
Enable LLDP-MED — Enable/disable LLDP-MED on the port.
