606 Dell PowerConnect 55xx Systems User Guide
Etherlike Statistics
To display interface error statistics:
1
Click
Statistics/RMON
>
Table Views
>
Etherlike Statistics
in the tree
view to display the
Etherlike Statistics
page.

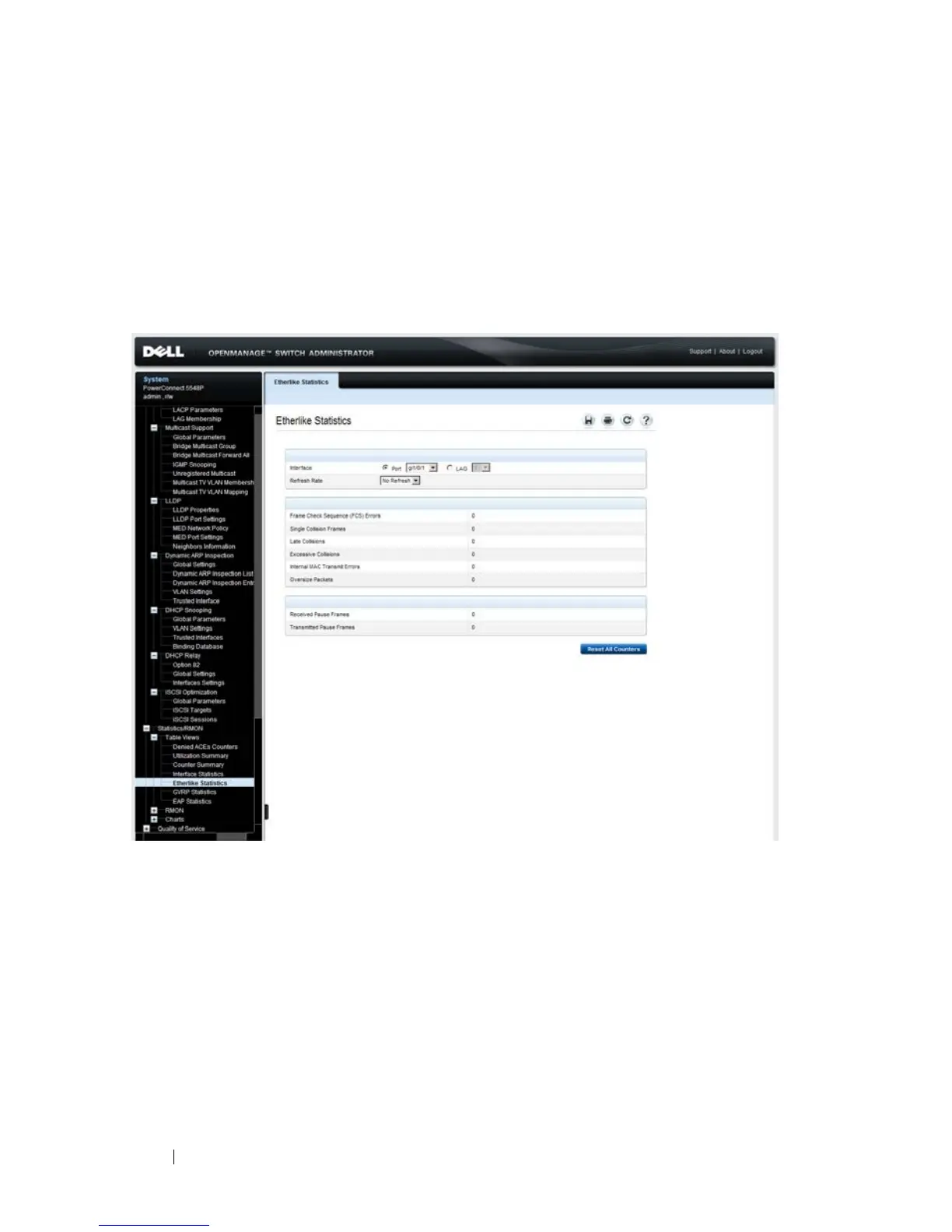

Figure 21-5. Etherlike Statistics
2
Select a port/LAG.
The following fields are displayed:
–
Frame Check Sequence (FCS) Errors
— Number of frames received
that are an integral number of octets in length but do not pass the
FCS check.
–
Single Collision Frames
— Number of frames that are involved in a
single collision, and are subsequently transmitted successfully.
–
Late Collisions
— Number of collisions detected after the first 512
bits of data.
