Dell POWERCONNECT 5524P - General

Dell PowerConnect 55xx Systems User Guide 643
General
This section contains the following topics:
•QoS Mode
• QoS Properties
•Queue
• Mapping to Queue
•Bandwidth
• TCP Congestion Avoidance
QoS Mode
To enable/disable the QoS mode:
1
Click Quality of Service > General > QoS Mode in the tree view to
display the
QoS Mode page.

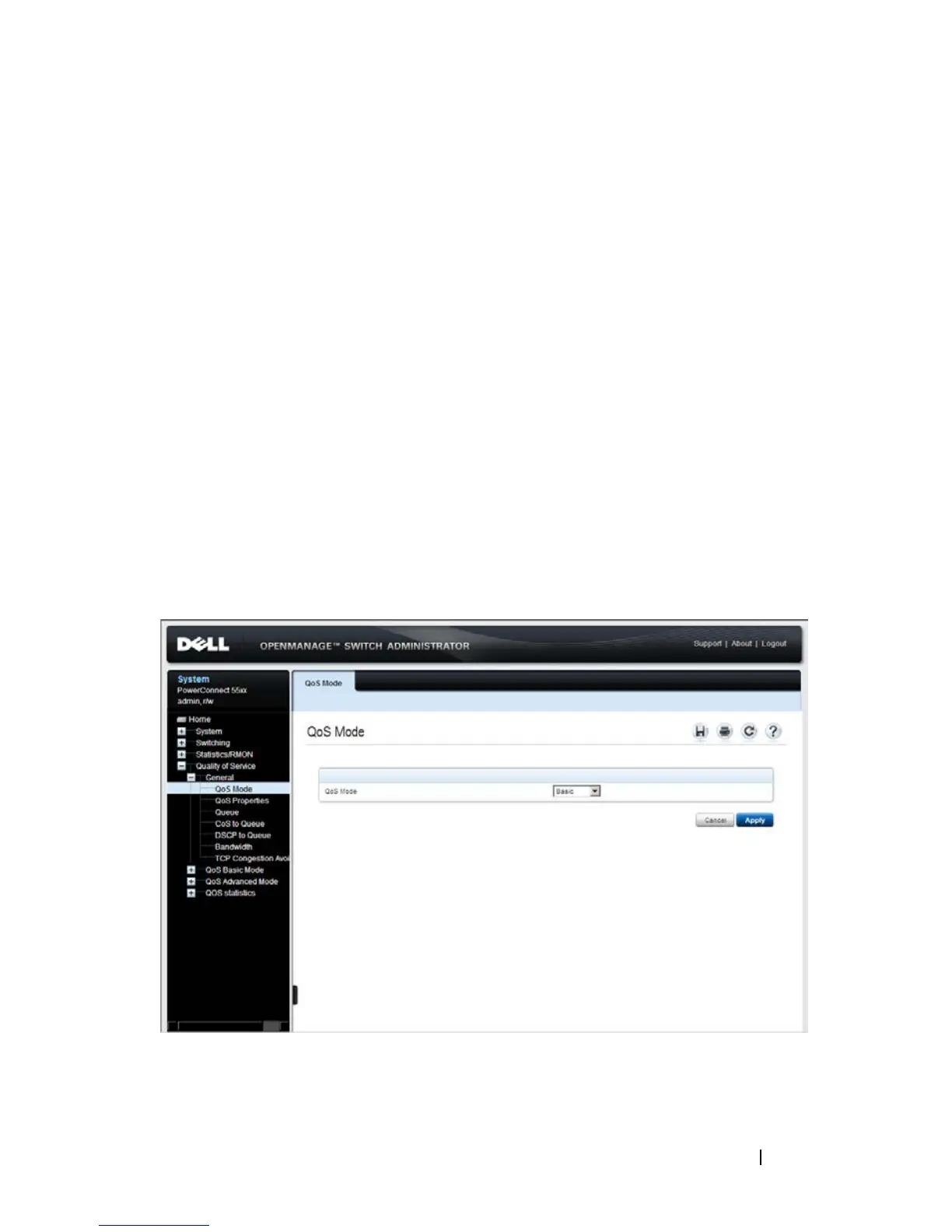

Figure 22-1. QoS Mode
2 Select the QoS Mode . The possible options are:
–
Basic — QoS is enabled in Basic mode on the switch
