Dell POWERCONNECT 5524P - Dynamic ARP Inspection Entries

Dell PowerConnect 55xx Systems User Guide 557
Dynamic ARP Inspection Entries
To add additional addresses to the lists defined in the Dynamic ARP
Inspection List
page:
1
Click Switching > Dynamic ARP Inspection Entries > Dynamic ARP
Inspection Entries
in the tree view to display the Dynamic ARP
Inspection Entries: Summary
page.

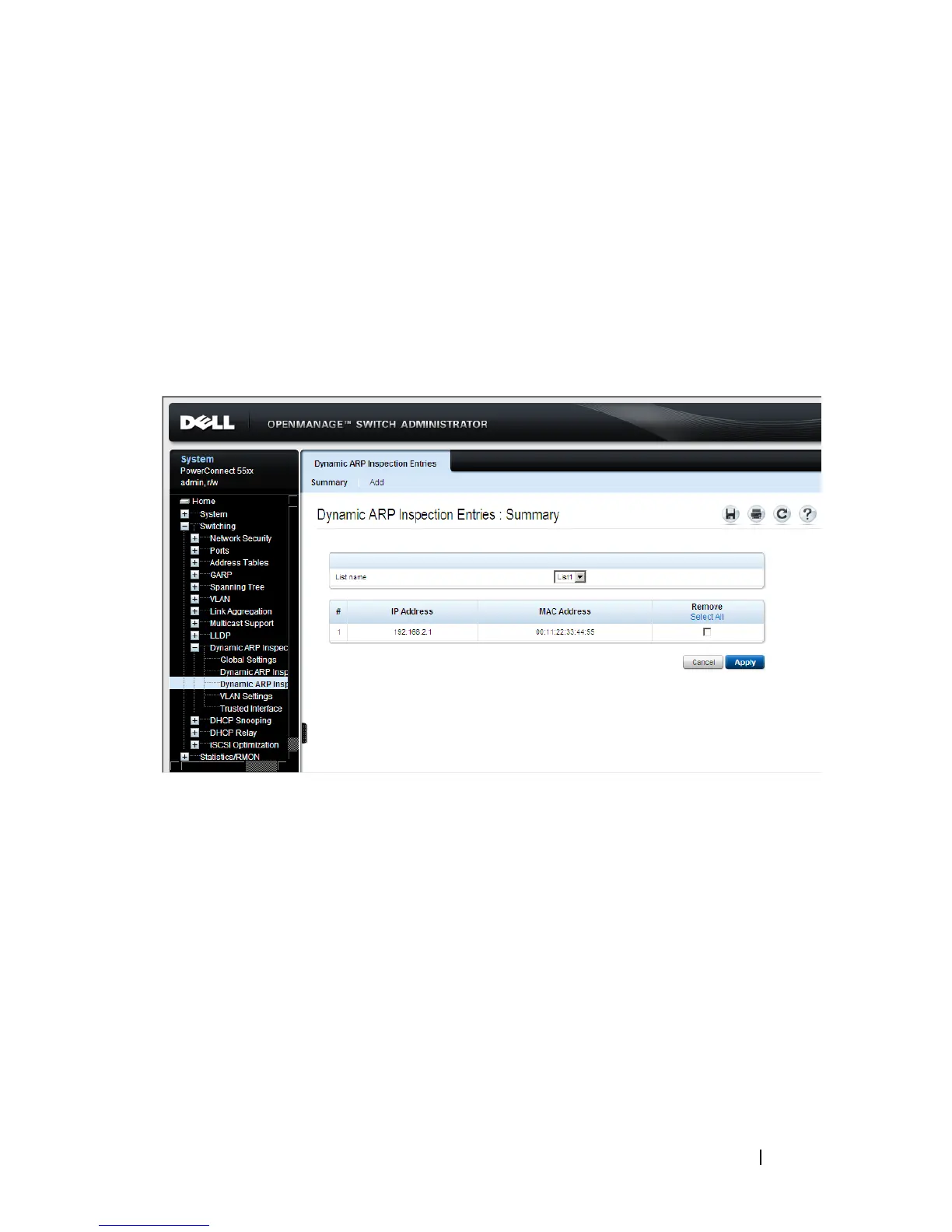

Figure 18-3. Dynamic ARP Inspection Entries: Summary
The dynamic ARP entries for the selected list are displayed.
2 To add a new address pair to a list, click Add and select the list.
3 Enter the fields:
•
IP Address — Enter the IP address that will be mapped to the MAC
address entered below.
•
MAC Address — Enter the MAC address that will be mapped to the
IP address entered above.
