Dell PowerConnect 55xx Systems User Guide 465
VLAN Membership
The device supports up to 2-4094 VLANs.
Ports are assigned to a VLAN in the Port Settings pages.
To view the ports in a VLAN, and assign various parameters:
1
Click
Switching
>
VLAN
>
VLAN Membership
in the tree view to
display the
VLAN Membership: Summary
page.

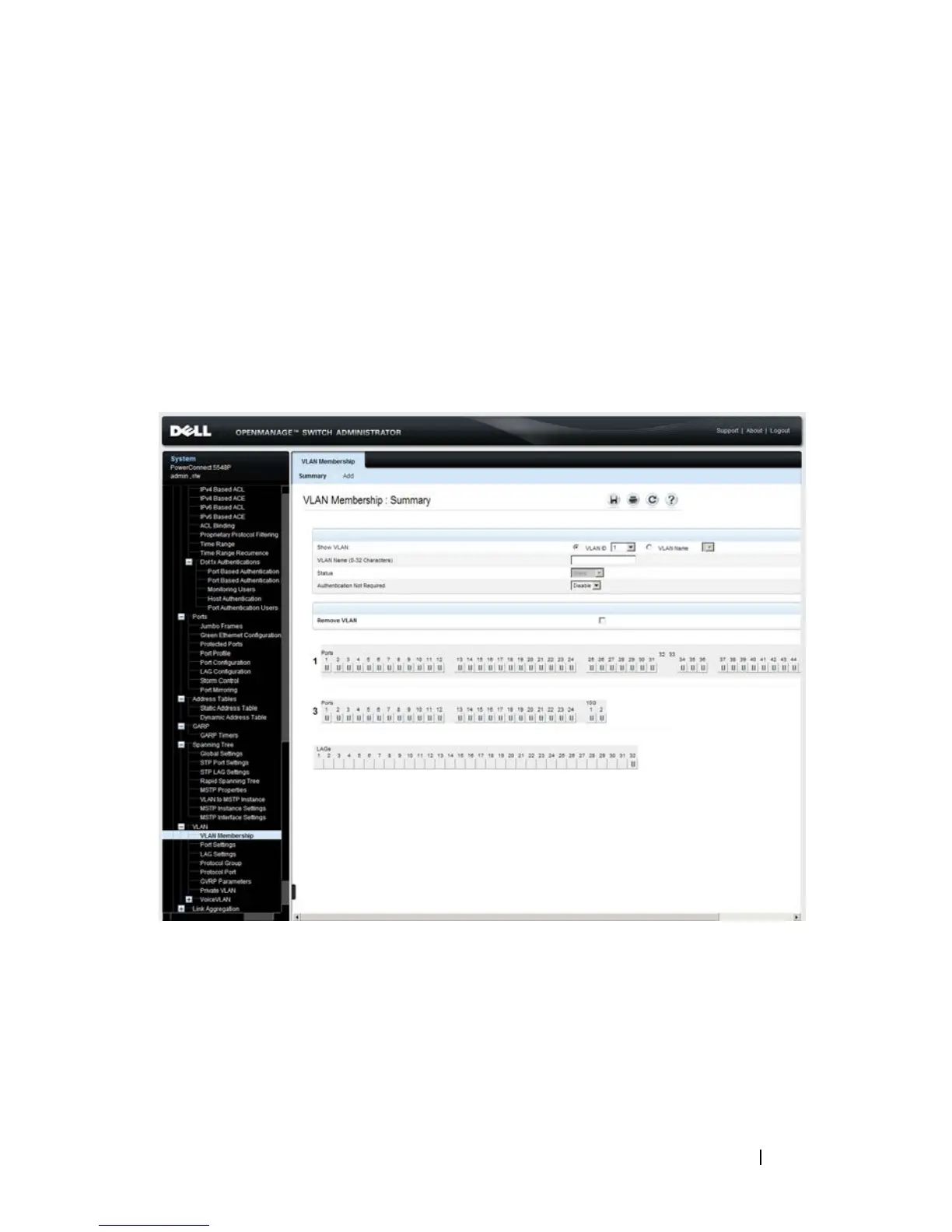

Figure 14-2. VLAN Membership: Summary
The ports in the selected unit/VLAN are displayed along with their
statuses.
Each port/LAG is labeled with one of the following codes, regarding its
membership in the VLAN:
