418 Dell PowerConnect 55xx Systems User Guide
Static Addresses
Static addresses are manually assigned to a specific interface and VLAN on
the switch. If a static address is seen on another interface, the address is
ignored and it is not written to the address table.
To define a static address:
1
Click
Switch
>
Address Tables
>
Static Address Table
in the tree view to
display the
Static Address Table: Summary
page.

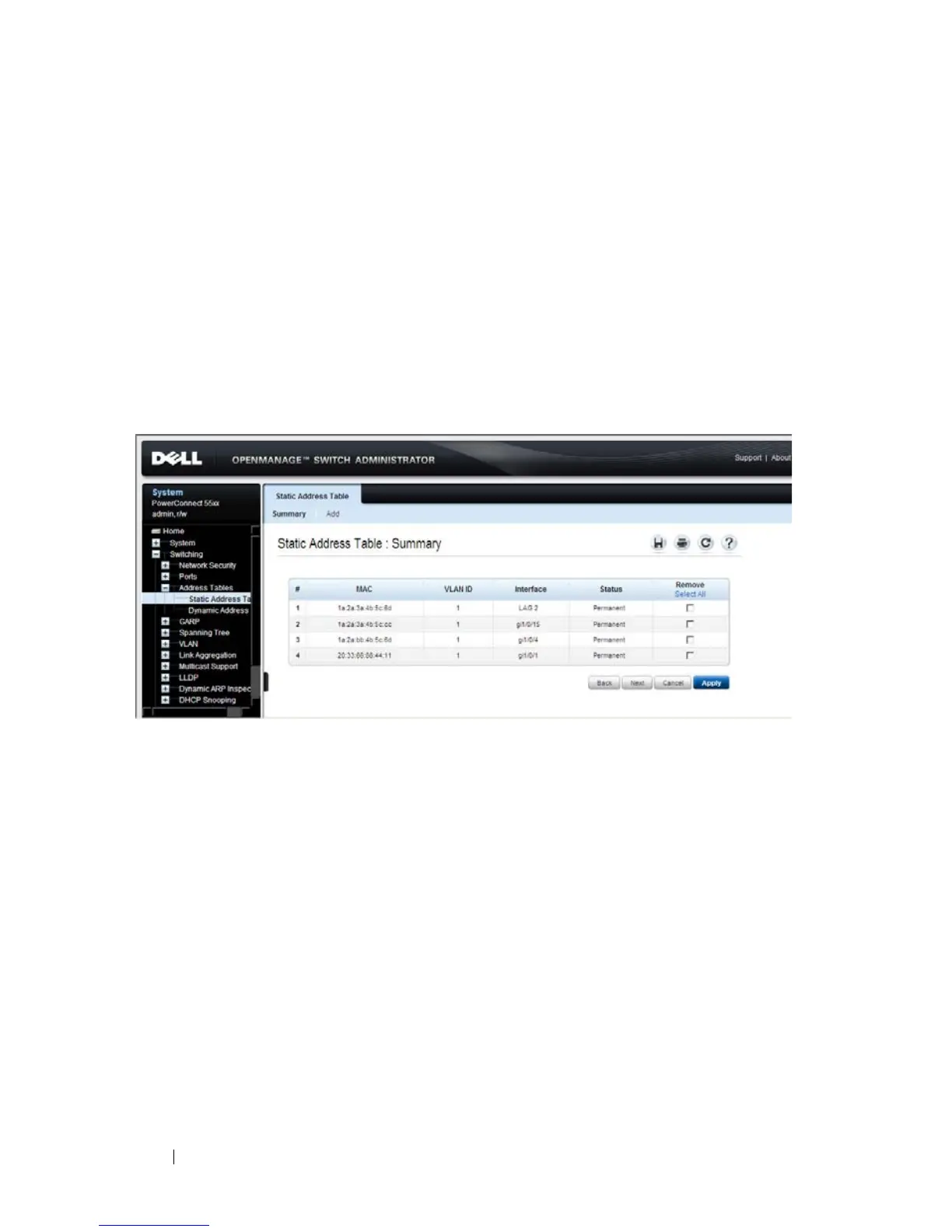

Figure 11-1. Static Address Table
A list of the currently-defined static addresses is displayed.
2
To add a static address, click
Add
.
3
Enter the following fields:
•
Interface
— Select a port or LAG for the entry.
•
MAC Address
— Enter the interface MAC address.
•
VLAN ID
— Check and select the VLAN ID for the port.
or
•
VLAN Name
— Check and enter the VLAN name.
•
Status
— Select how the entry in the table will be treated. The
possible options are:
