Protocol Port
A protocol port is a port assigned to a particular protocol group. Traffic from
particular types of frames may be assigned to a protocol group, which has a
port and VLAN associated with it.
To add an interface to a protocol group:
1
Click Switching > VLAN > Protocol Port in the tree view to display the
Protocol Port: Summary page.

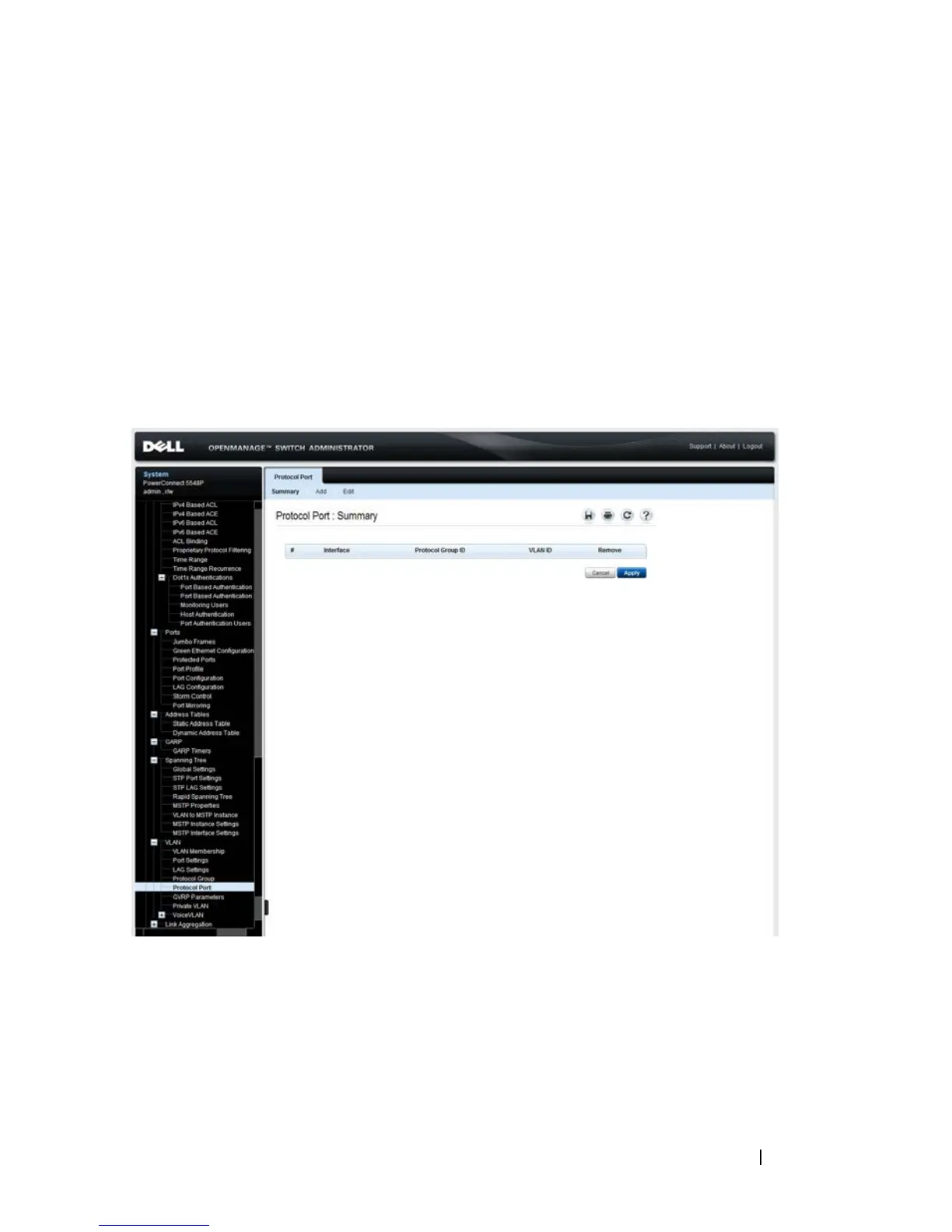

Figure 14-6. Protocol Port: Summary
A list of previously-defined protocol groups is displayed.
2 To assign an interface to a protocol group, click Add , and enter the fields:
–
Interface — Port or LAG number to be added to a protocol group.
–
Group ID — Select a protocol group ID to which the interface is
added.
