Dell PowerConnect 55xx Systems User Guide 85
Device Representation
The home page contains a graphical representation of the units in the stack’s
front panels. Figure 9-1 displays the 5548 model, but the display for the other
models are similar.

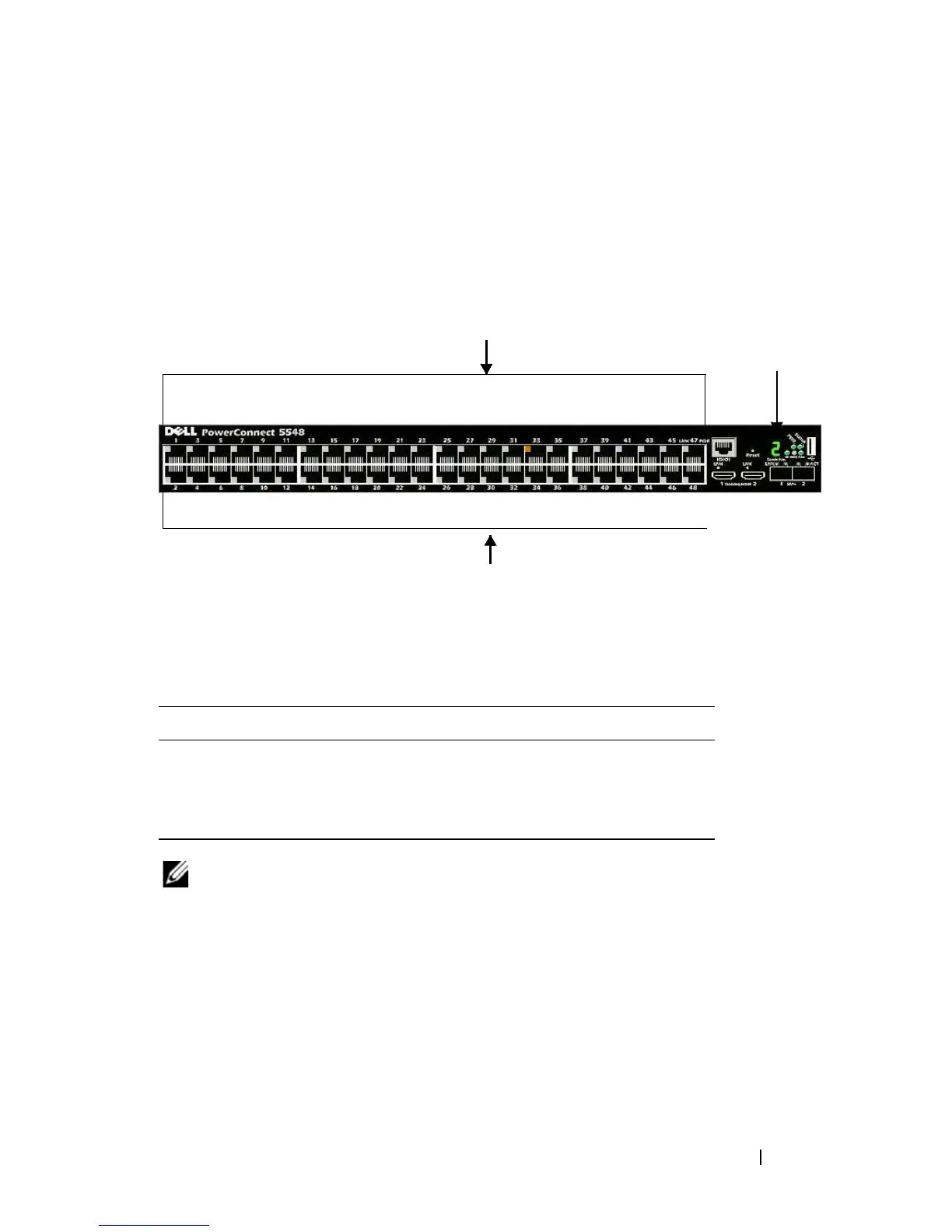

Figure 7-1. PowerConnect Device Port Indicators
The graphic display on the home page displays the Unit ID and port
indicators that specify whether a specific port is currently active. Table 9-1
describes the port colors that are displayed and their meaning:
Table 7-1. Port Colors
NOTE: For more information about LEDs, see "LED Definitions" on page 38.
To configure a port double-click on its icon.
Only ports that are physically present are displayed in the PowerConnect
OpenManage Switch Administrator home page, and can be configured
through the web management system. Non-present ports can be configured
through the CLI or SNMP interfaces.
Port Representation
Ports are referred to in the notation: [gi/te]x/0/z, where:
Component Description
Amber The port is currently connected at 100 Mbps.
Green The port is currently connected at 1000 Mbps
Grey The port is currently disconnected
