Dell PowerConnect 55xx Systems User Guide 321
To define an SNMP community:
1
Click
System
>
SNMP
>
Communities
in the tree view to display the
Communities: Summary
page.

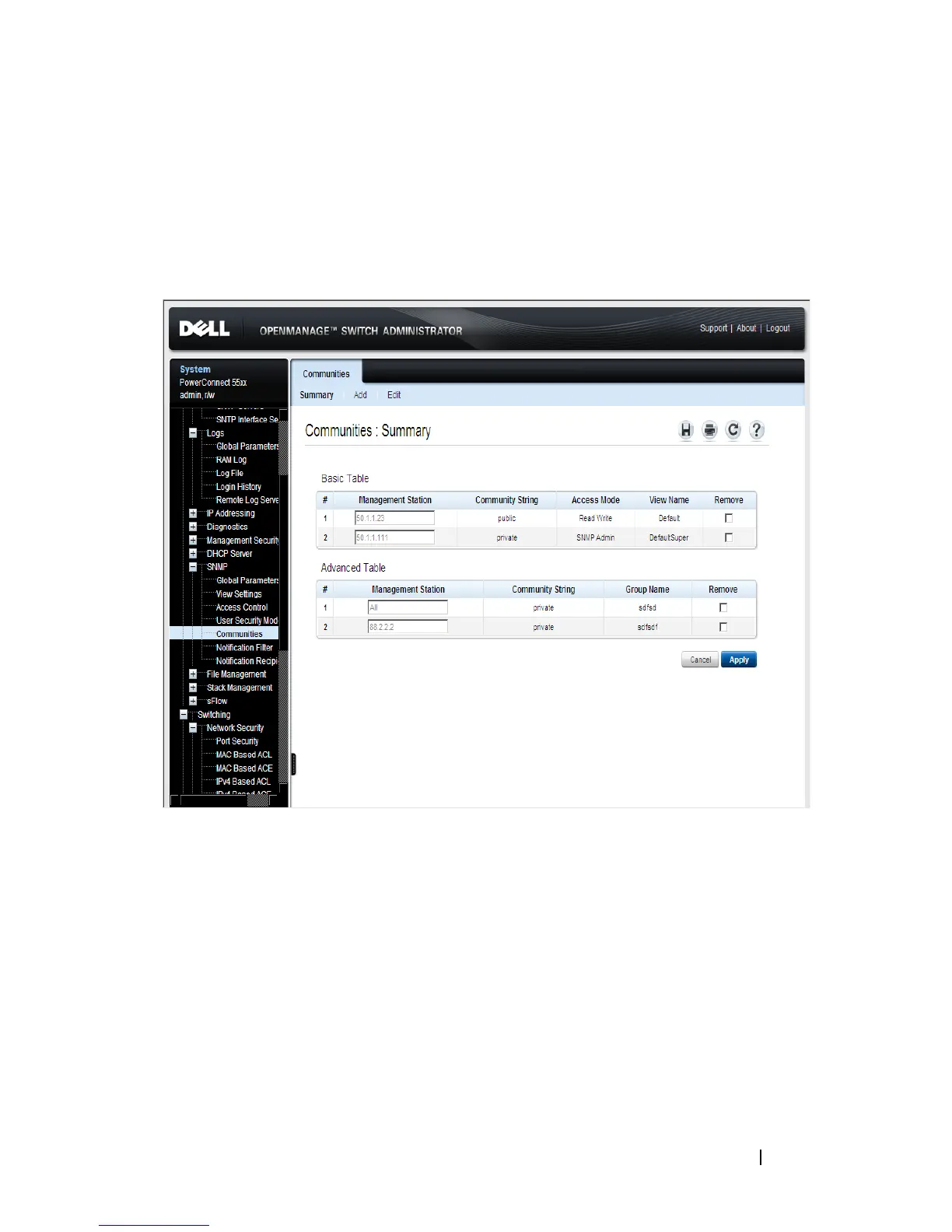

Figure 9-51. SNMP Community
The Basic and Advanced tables are displayed.
2
To add a new community, click
Add
.
3
Define the SNMP management station by entering its IP address
information:
Supported IP Format
— Select whether the IPv4 or IPv6 format is
being used.
IPv6 Address Type
— When the community supports IPv6, this
specifies the type of static address supported. The possible options are:
Link Local
— A Link Local address that is non-routable and used
for communication on the same network only.
