Dell POWERCONNECT 5524P

350 Dell PowerConnect 55xx Systems User Guide
The following methods can be used:
• To upload from a USB port or when management computer uses HTTP
• To upload a file or image using TFTP
To upload from a USB port or when management computer uses HTTP
1 Click System > File Management > File Upload in the tree view to
display the
File Upload page.

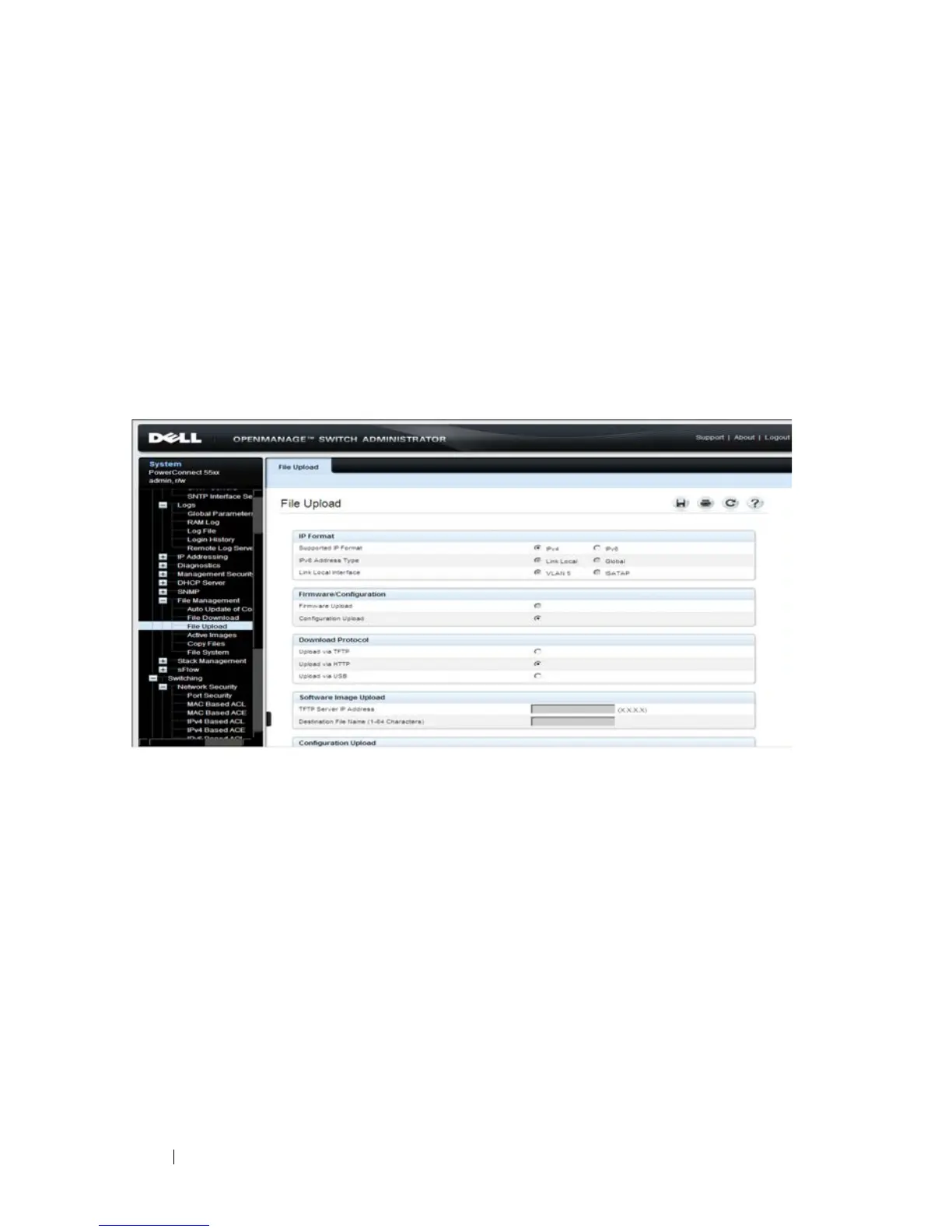

Figure 9-57. File Upload
2 Configuration Upload is selected automatically.
3 Select to upload a configuration file when the management computer is
using HTTP or from a USB port in
Download Protocol .
4 Enter the fields:
–
Transfer File Name — The configuration file to which the
configuration is uploaded. The possible options are:
•
Running Configuration — Uploads the Running Configuration
file.
•
Startup Configuration — Uploads the Startup Configuration file.
5 Click Activate to start the upload process. A message will be displayed
asking where for the path of the destination file.
