To assign a profile to a port:
1
Click
Switching
>
Ports
>
Port Profile
in the tree view to display the
Port
Profiles: Summary
page.

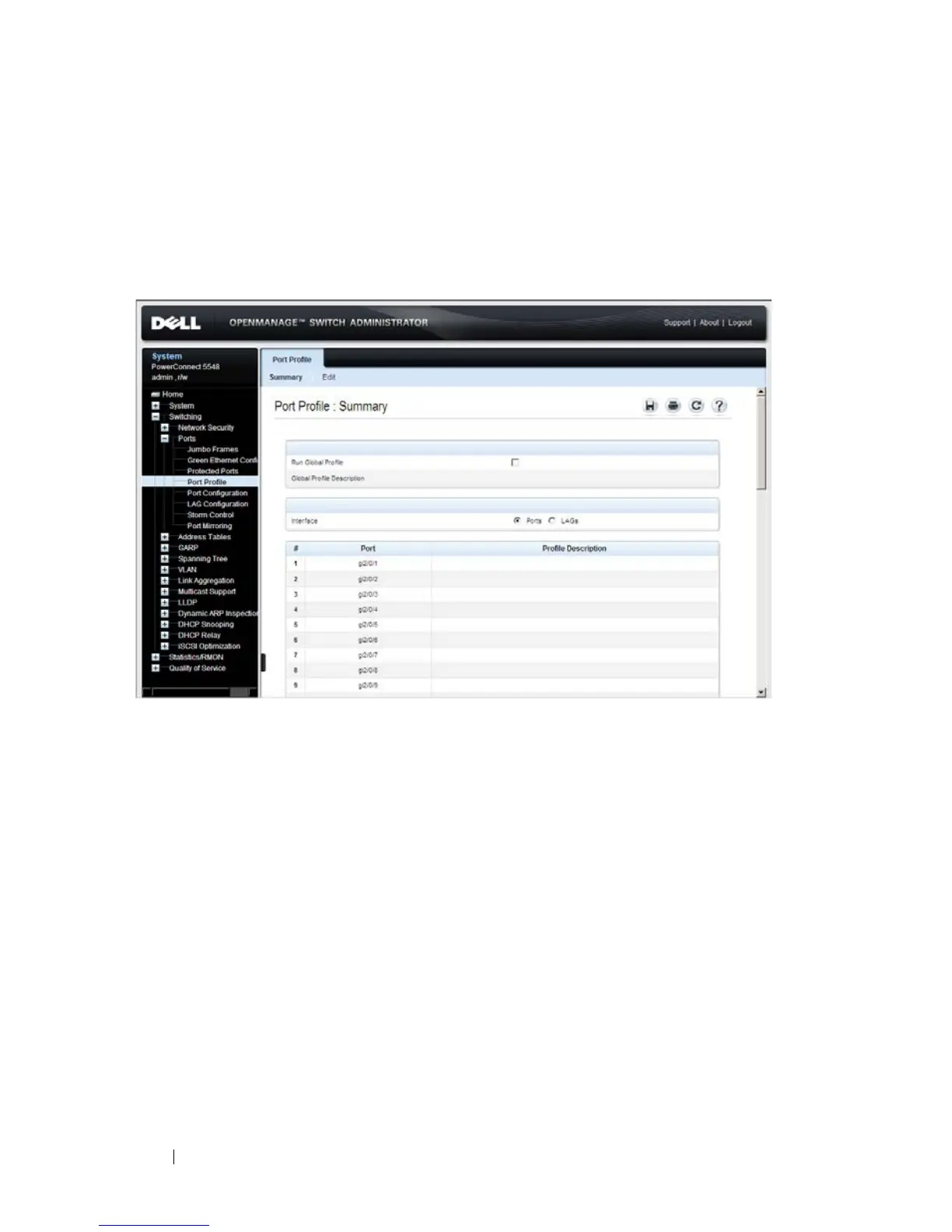

Figure 10-4. Port Profile: Summary
A summary of all the interfaces and their profiles is displayed.
2
To assign the
Global
profile to the system, check
Run Global Profile
.
Apply the global profile before applying a built-in interface profile.
3
To assign a profile to an interface, click
Edit
.
4
Select a unit/interface and a
Assigned Profile
. The
Profile Description
is
displayed.
5
Each profile requires entering various elements of VLAN information.
Enter the fields according to the profile:
–
VLAN Port Mode
— Displays the port mode applied to ports in the
profile.
–
VLAN ID-Untagged (1-4094)
— Enter the VLAN for untagged
traffic.
–
VLAN ID-Tagged (1-4095)
— Enter the VLAN for tagged traffic.
