574 Dell PowerConnect 55xx Systems User Guide
To query and add IP addresses to the Binding database:
1
Click Switching > DHCP Snooping > Binding Database in the tree view
to display the Binding Database: Summary page.

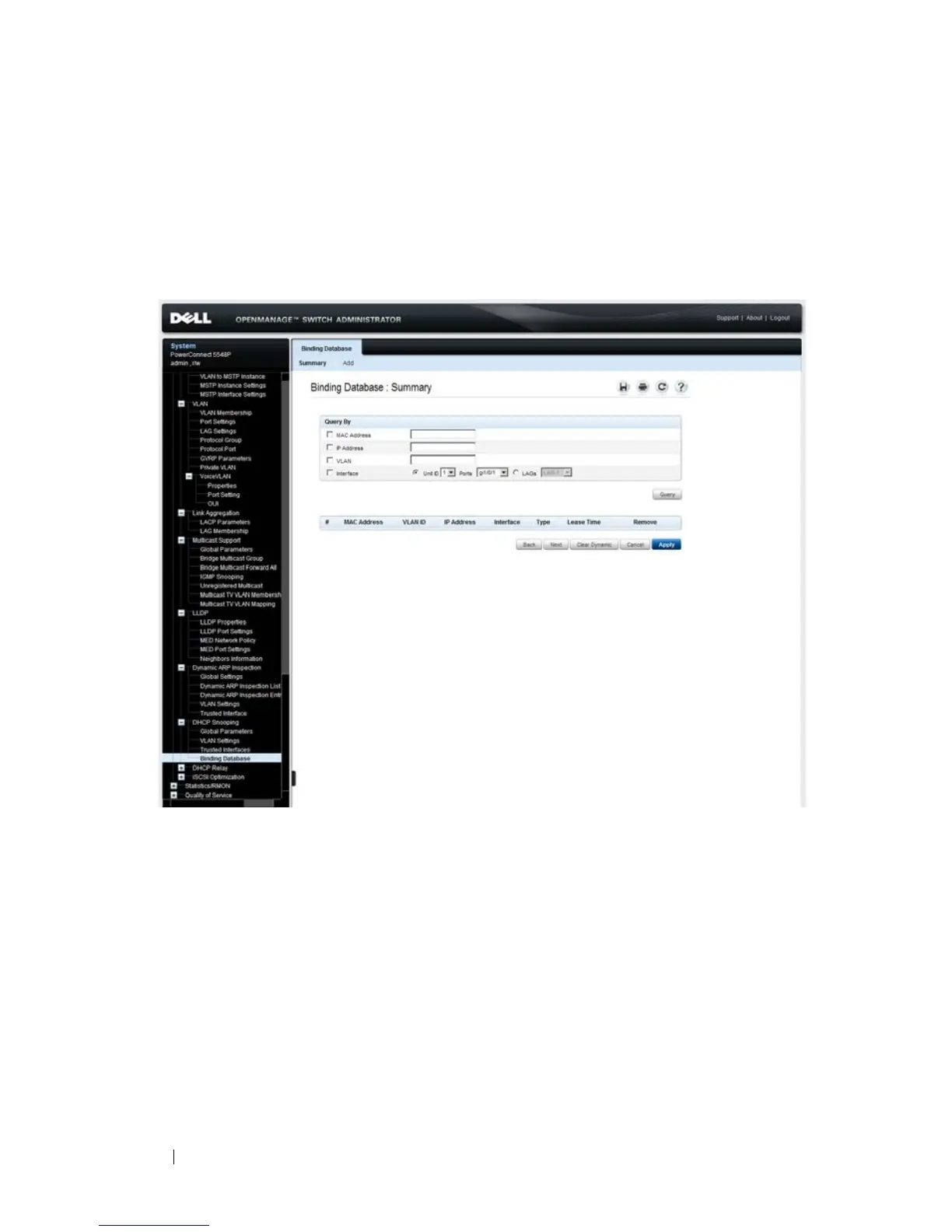

Figure 19-4. Binding Database
A list of the database entries is displayed.
2 To query the database, enter query criteria and click Query . Database
entries matching the query are displayed.
3 To add a entry, click Add , and enter the fields:
–
Ty p e — Select the entry type. The possible options are:
•
Static —IP address was statically configured.
•
Dynamic —IP address was dynamically configured.
–
MAC Address — Enter the MAC address to be recorded in the entry.
