602 Dell PowerConnect 55xx Systems User Guide
Counter Summary
To display the number of received and transmitted packets on ports, as
numeric figures and not percentages:
1
Click
Statistics/RMON
>
Table Views
>
Counter Summary
in the tree
view to display the
Counter Summary
page.

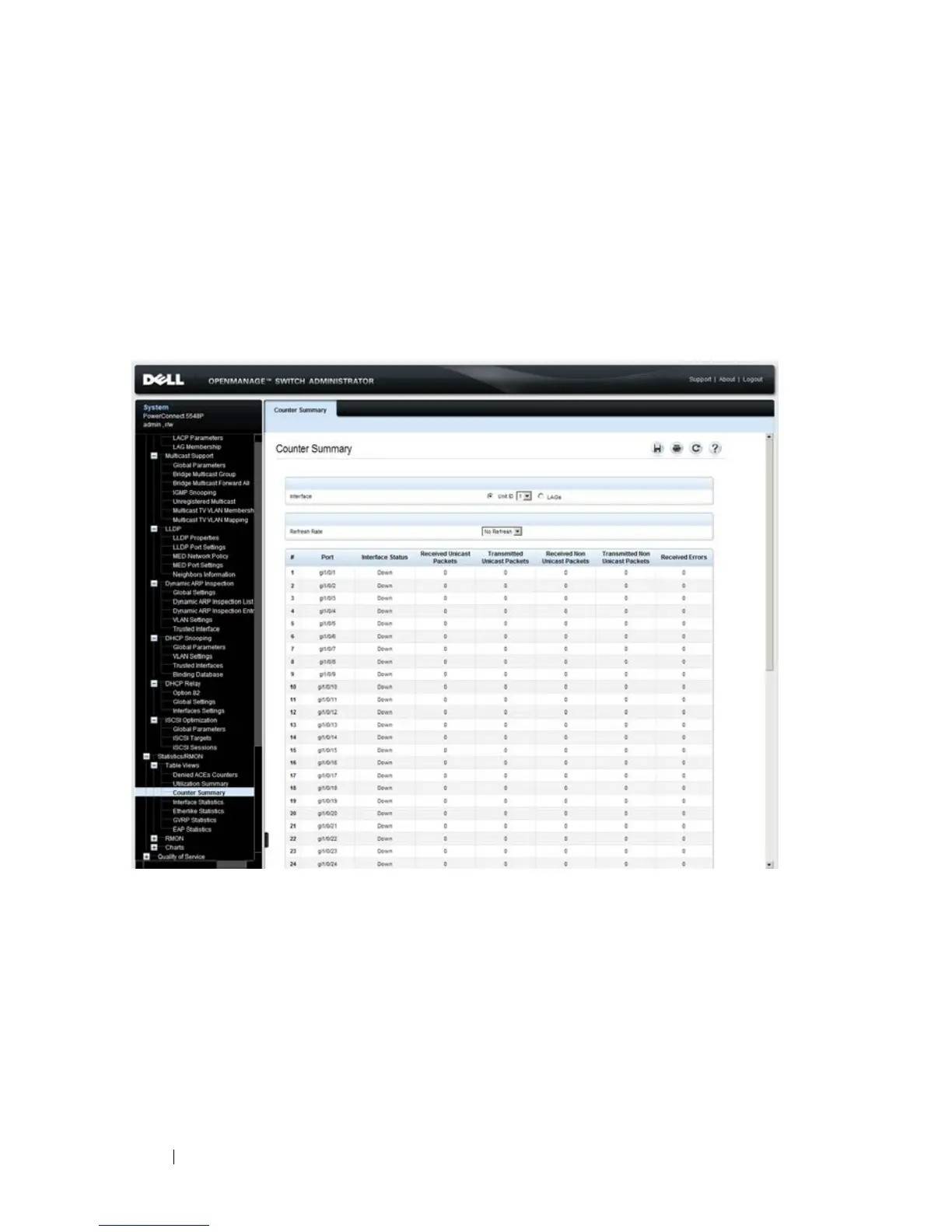

Figure 21-3. Counter Summary
Counters for the selected units or LAG are displayed.
2
Select a port/LAG.
The following fields are displayed:
–
Port/LAG
— The interface number.
–
Interface Status
— Status of the interface:
Up
or
Down
.
–
Received Unicast Packets
— Number of received Unicast packets on
the interface.
