Dell PowerConnect 55xx Systems User Guide 627
Events Log
The Events log displays the log of events that occurred. An event is logged
when the type of the event is Log or Log and Trap. The action in the event is
performed when the event is bound to an alarm (see the Alarms page) and
the conditions of the alarm have occurred.
To display the events log:
•Click Statistics/RMON > RMON > Events Log in the tree view to
display the
Events Control page.

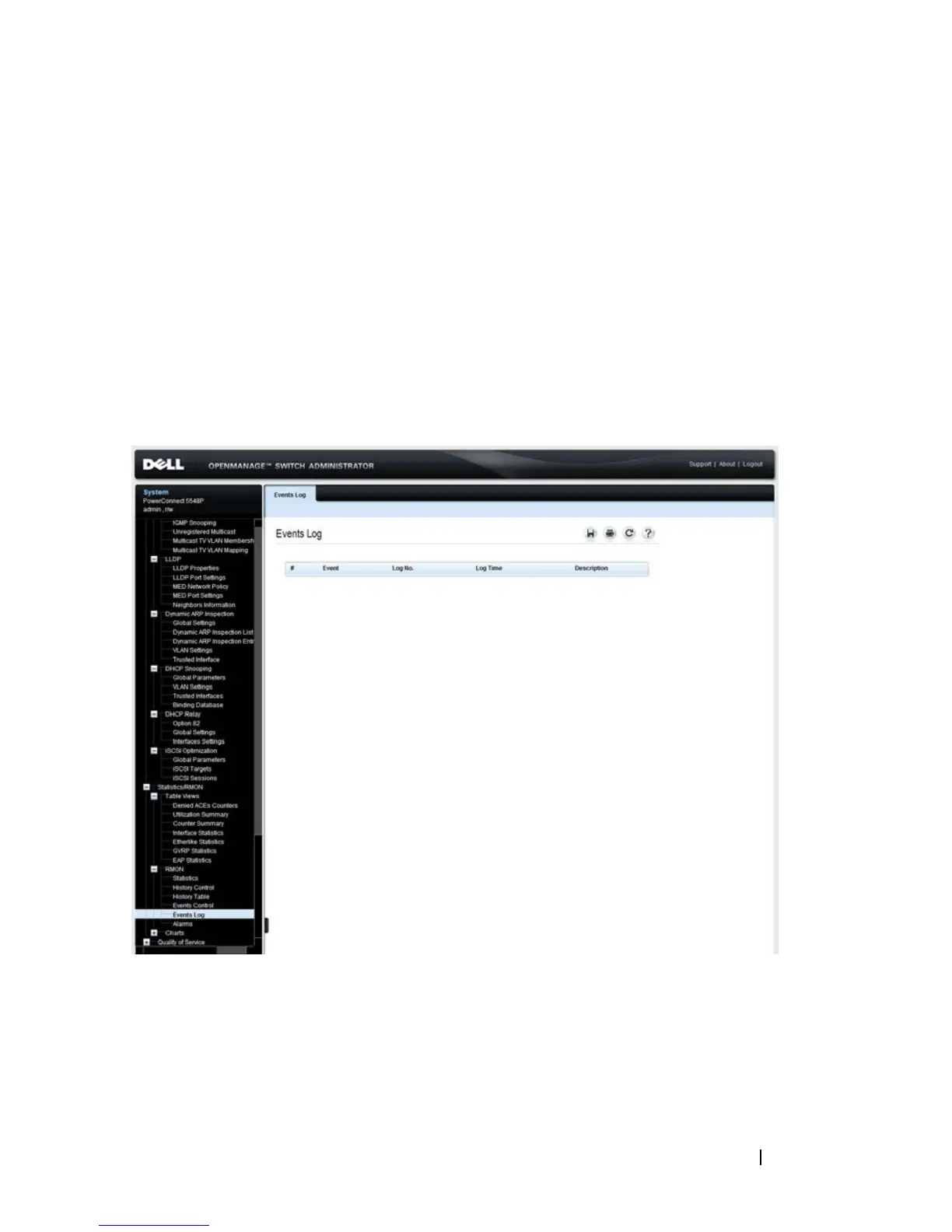

Figure 21-12. Events Control
The following fields are displayed:
–
Event — The event identifier.
–
Log No. — The log number.
–
Log Time — Time when the log entry was entered.
