Dell PowerConnect 55xx Systems User Guide 629
alarm is issued when a rising threshold is crossed. One or more alarms are
bound to an event. The event indicates the action to be taken when the alarm
occurs.
To add an RMON alarm:
1
Click
Statistics/RMON
>
RMON
>
Alarms
in the tree view to display
the
Alarms: Summary
page.

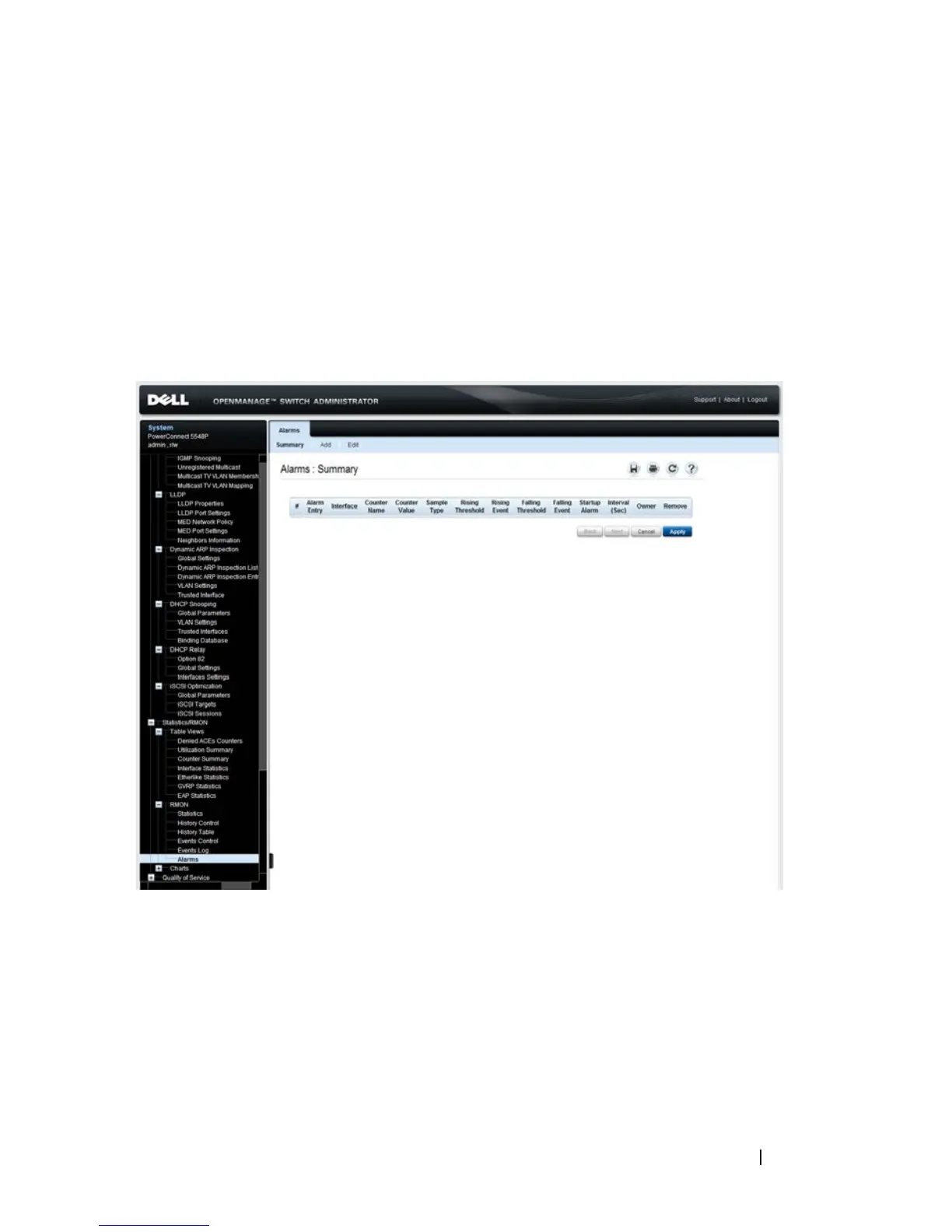

Figure 21-13. Alarms: Summary
The currently-defined alarms are displayed.
2
To add a new alarm, click
Add
and enter the fields:
–
Alarm Entry
— Displays a new alarm entry.
–
Interface
—
Select the interface for which RMON statistics are
displayed.
–
Counter Name
— Select the selected MIB variable.
