Dell POWERCONNECT 5524P

Dell PowerConnect 55xx Systems User Guide 651
To map CoS values to egress queues:
1
Click Quality of Service > General > CoS to Queue in the tree view to
display the
CoS to Queue page.

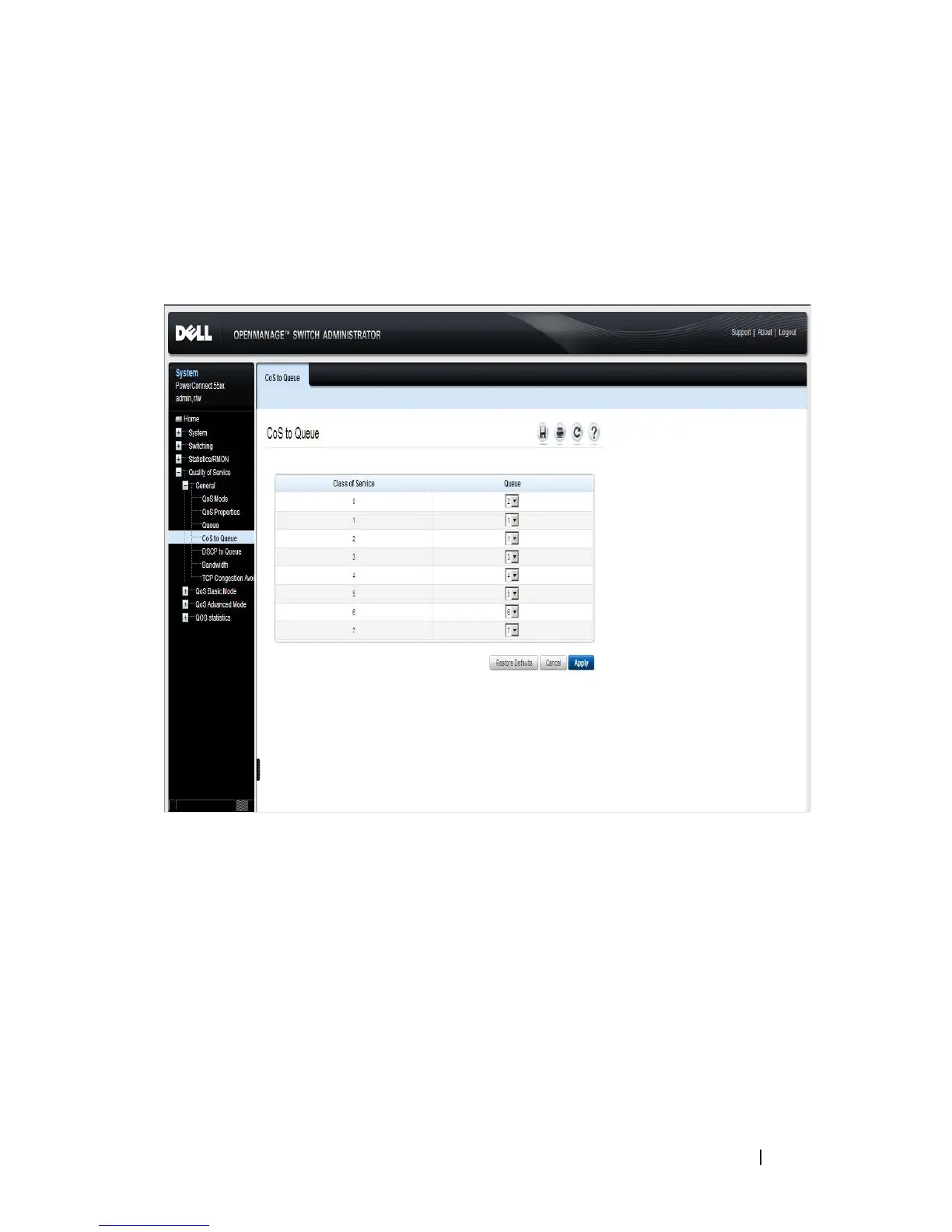

Figure 22-4. CoS to Queue
The CoS/queue mappings are displayed.
2 Enter the fields:
–
Class of Service — The CoS priority tag values, where zero is the
lowest priority and 7 is the highest priority.
–
Queue — The queue to which the CoS priority is mapped.
