Dell PowerConnect 55xx Systems User Guide 653
To map DSCP to queues:
1
Click Quality of Service > General > DSCP to Queue in the tree view to
display the
DSCP to Queue page.

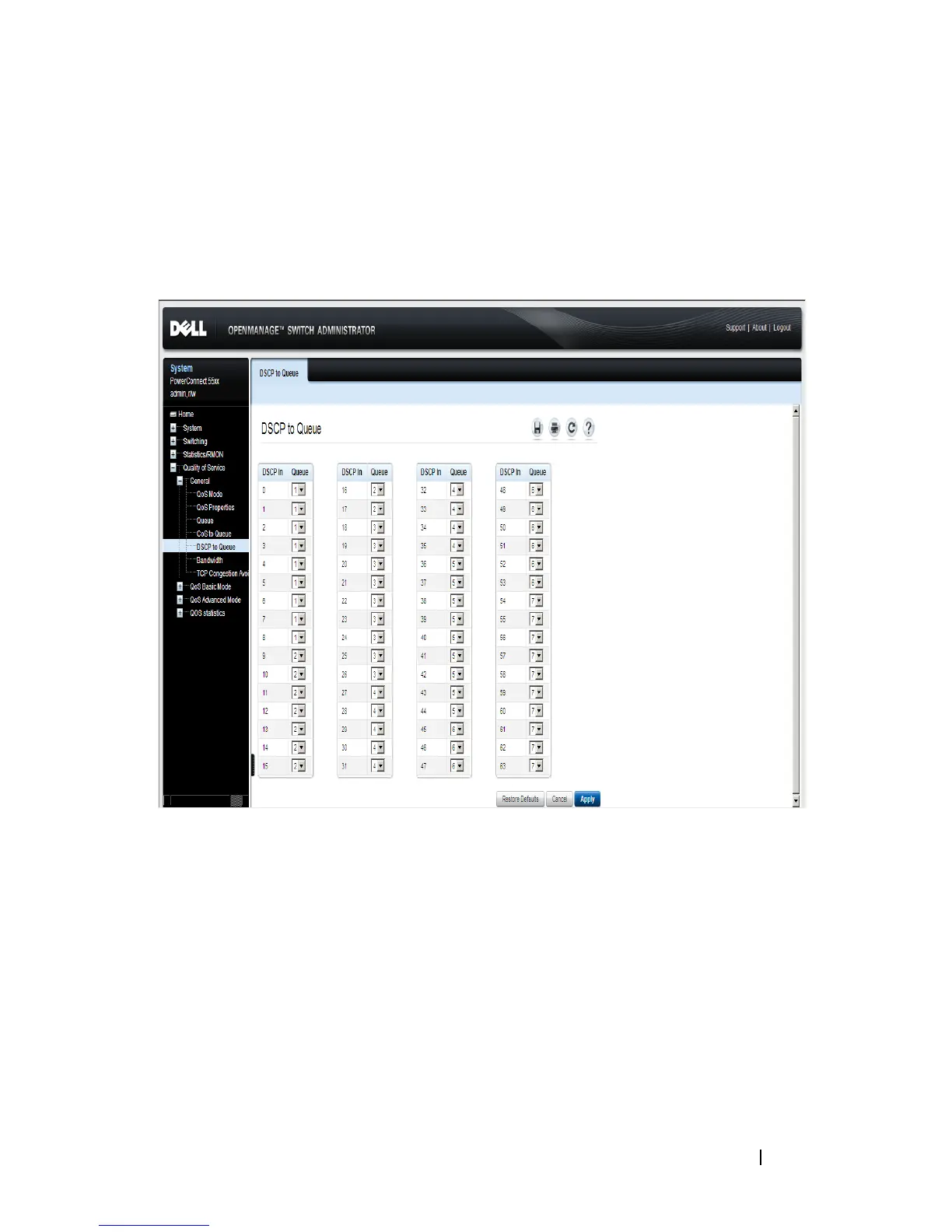

Figure 22-5. DSCP to Queue
The DSCP values in the incoming packet and its associated queues are
displayed.
2 Enter the fields:
–
DSCP In — The values of the DSCP field in the incoming packet.
–
Queue — The queue to which packets with the specific DSCP value is
assigned. The values are 1-8, where 1 is the lowest value, and 8 is the
highest.
