Dell POWERCONNECT 5524P

Dell PowerConnect 55xx Systems User Guide 655
To configure bandwidth limitation:
1
Click Quality of Service > General > Bandwidth in the tree view to
display the
Bandwidth: Summary page.

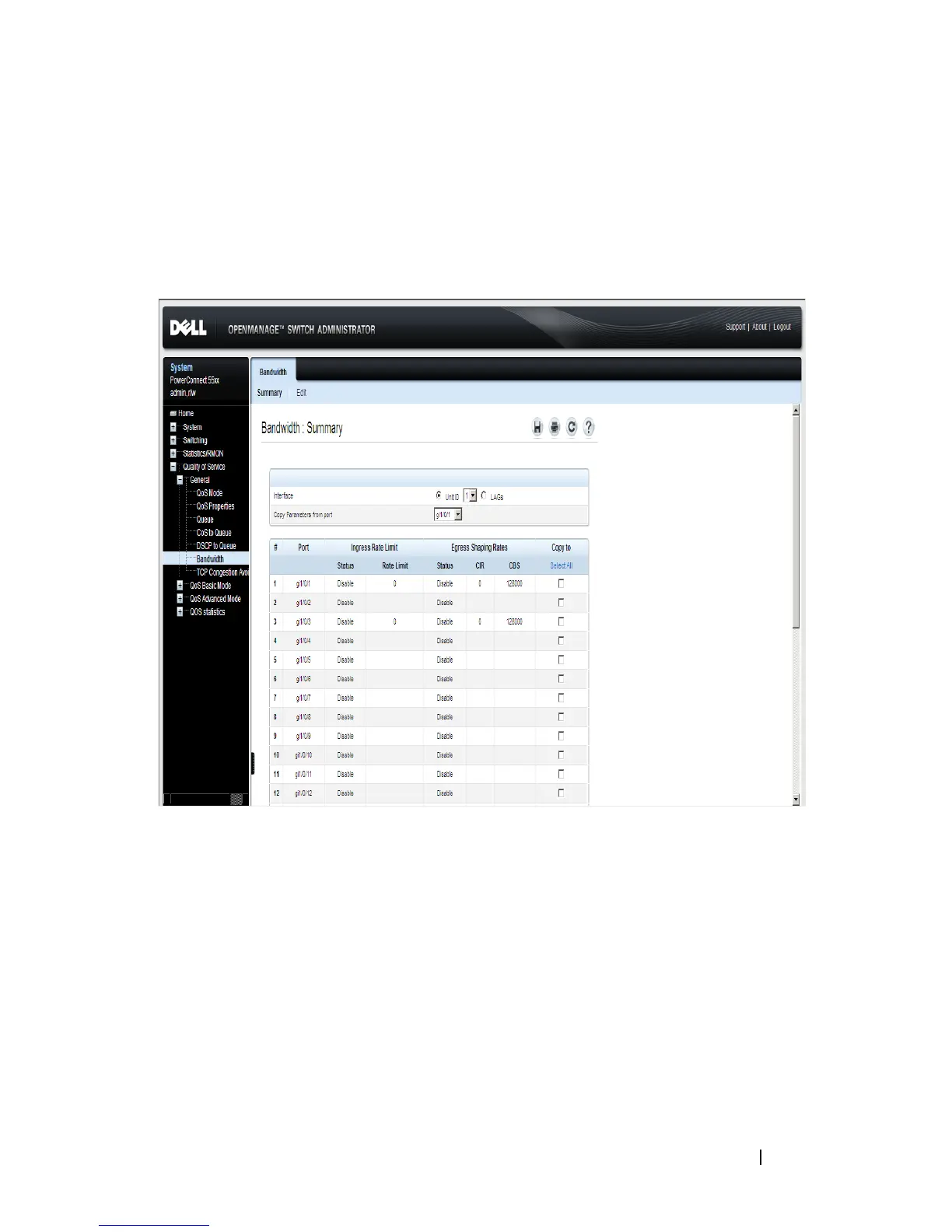

Figure 22-6. Bandwidth: Summary
The ingress and egress rates are displayed for all ports on the selected unit.
2 To set interface parameters, click Edit .
3 Select an interface, and enter the fields:
–
Enable Ingress Rate Limit — Enable/disable ingress traffic limit for
the interface. If this field is selected, enter the Ingress Rate Limit.
–
Ingress Rate Limit — Enter the ingress traffic limit for the interface.
