Dell PowerConnect 55xx Systems User Guide 663

To map DSCP In values to DSCP Out values:

Click

Quality of Service

QoS Basic Mode

DSCP Rewrite

in the tree

view to display the

DSCP Rewrite

page.

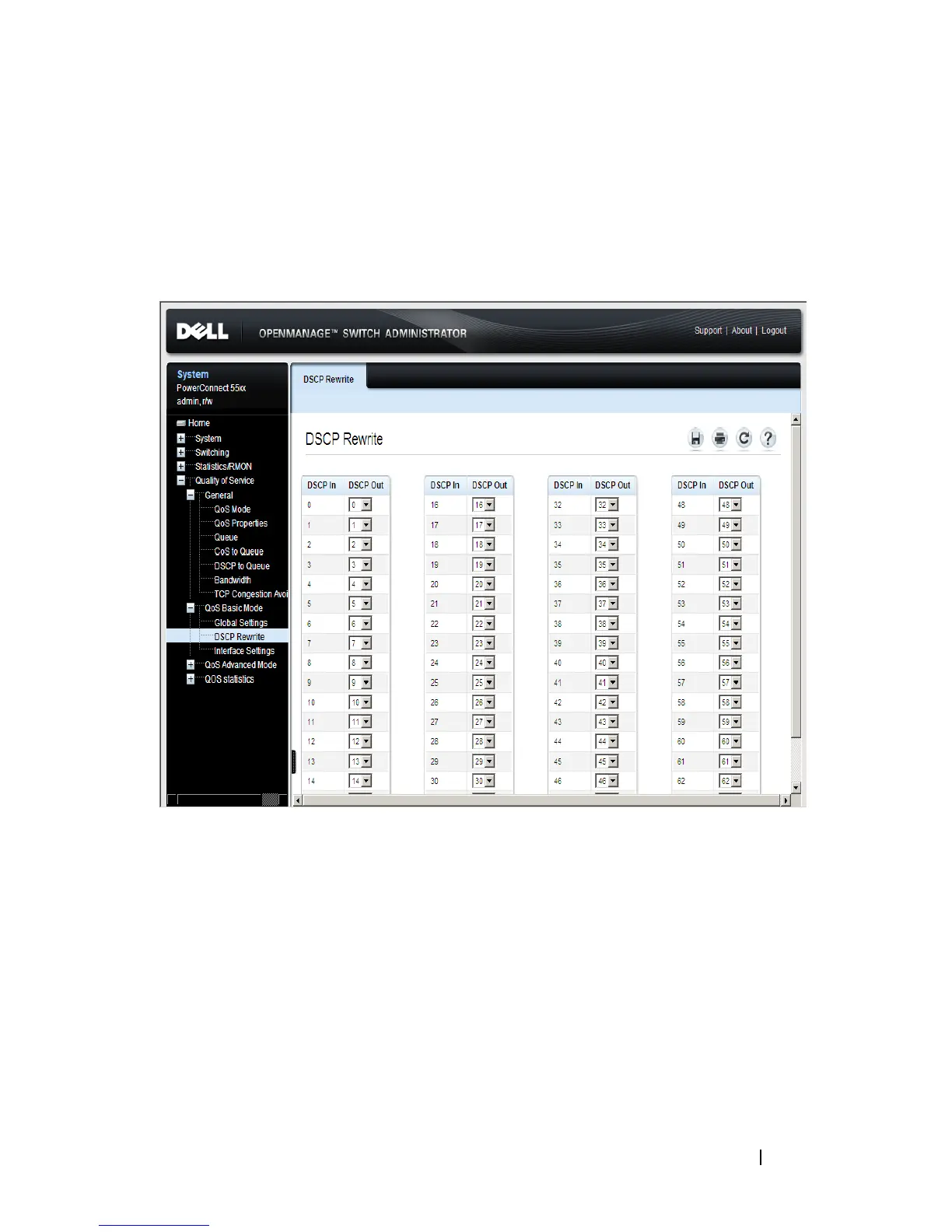

Figure 22-9. DSCP Rewrite
