Dell PowerConnect 55xx Systems User Guide 677
Aggregate Policers
To define an aggregate policer:
1
Click
Quality of Service > QoS Advanced Mode > Aggregate Policer
to
display the
Aggregate Policer: Summary
page.

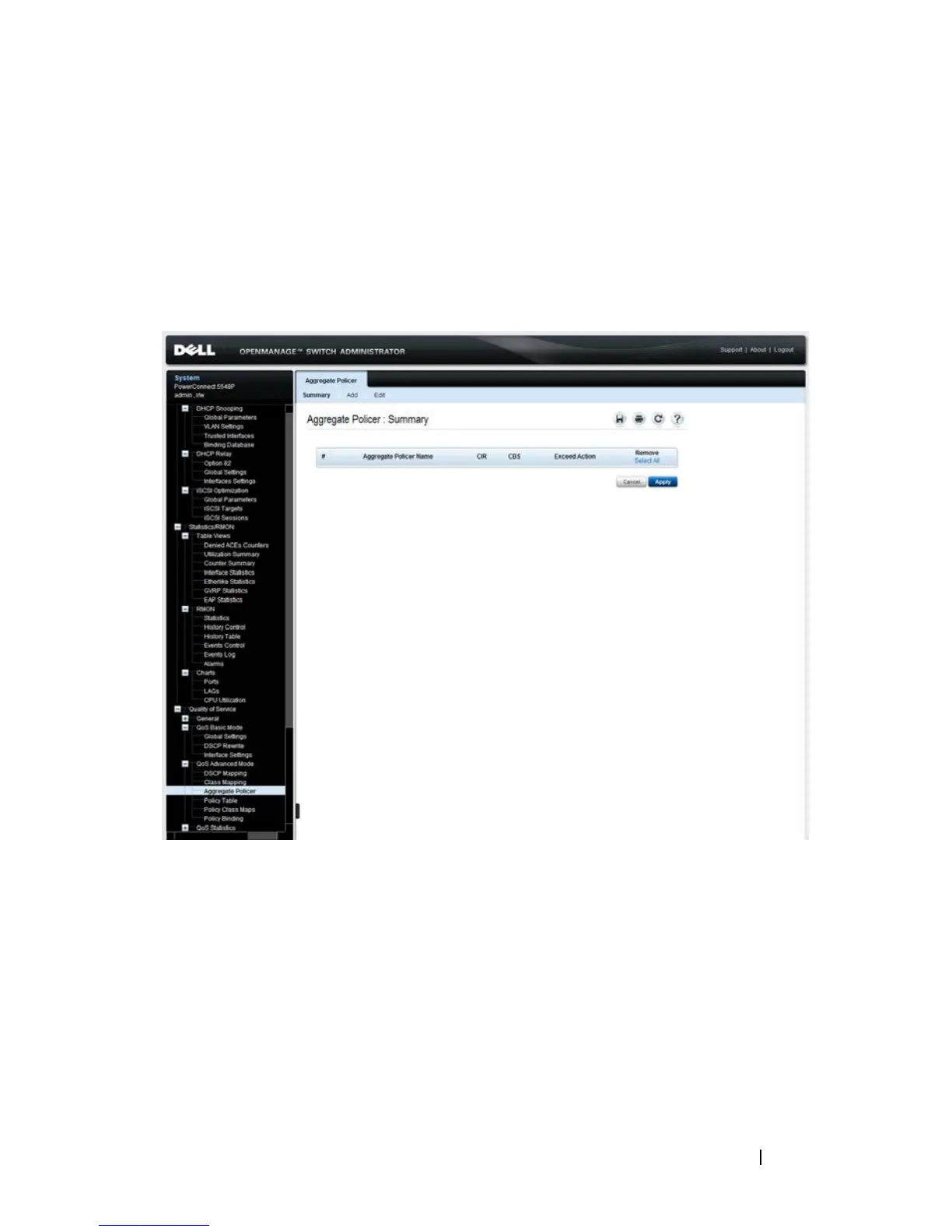

Figure 22-13. Aggregate Policer: Summary
The existing aggregate policers are displayed.
2
To add an aggregate policer, click
Add
, and enter the fields.
–
Aggregate Policer Name
— Enter the name of the Aggregate Policer.
–
Committed Information Rate (CIR)
— Enter the maximum
bandwidth allowed in bits per second. See the description of this field
in "Bandwidth" on page 654.
–
Committed Burst Size (CBS)
— Enter the maximum burst size
(even if it goes beyond the CIR) in bytes. See the description of this in
the "Bandwidth" on page 654.
