682 Dell PowerConnect 55xx Systems User Guide
Policy Class Maps
One or more class maps can be added to a policy. A class map defines the type
of packets that are considered to belong to the same traffic flow.
To add a class map to a policy:
1
Click Quality of Service > QoS Advanced Mode > Policy Class Maps to
display the
Policy Class Maps: Summary page.

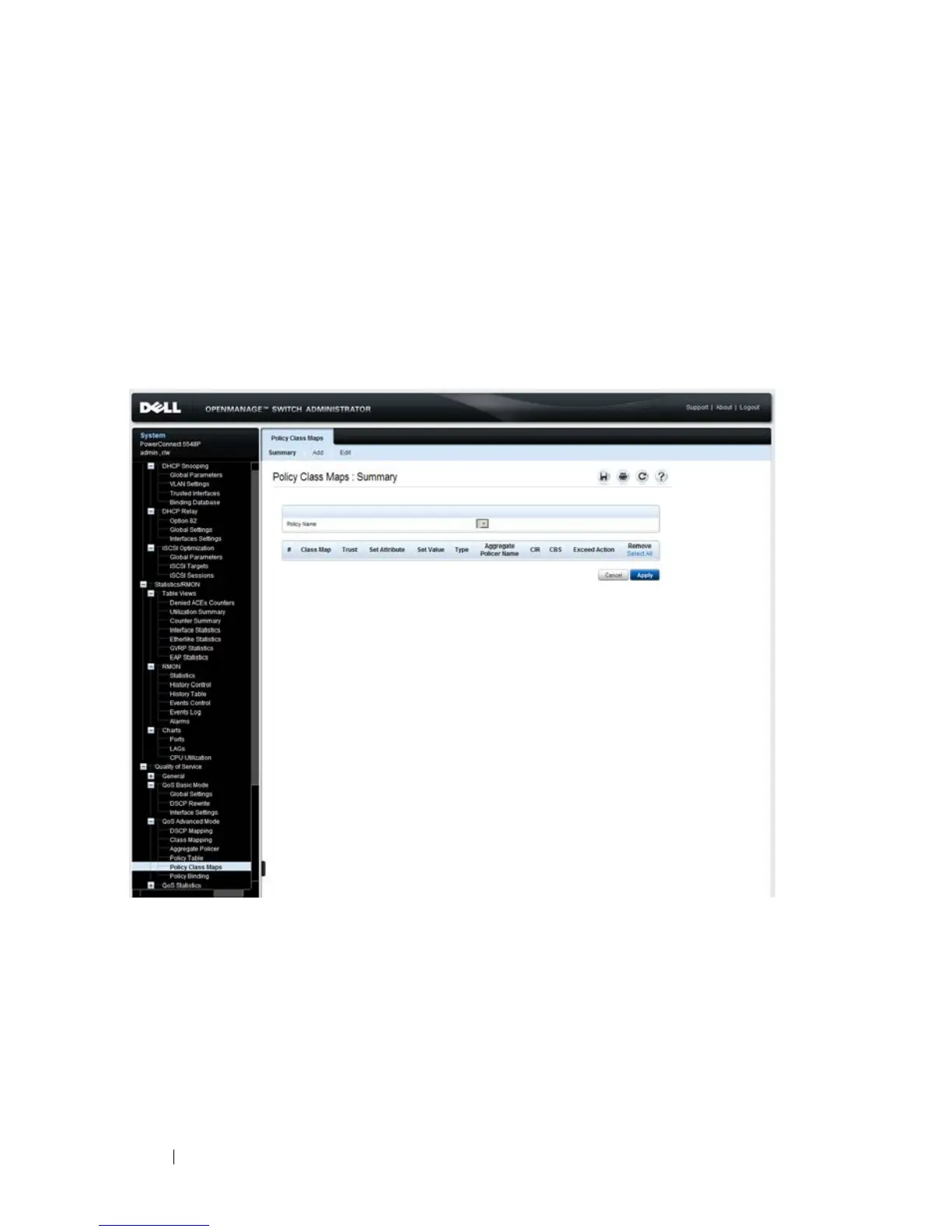

Figure 22-15. Policy Class Maps: Summary
2 Select a policy in the Policy Name field. The class maps in that policy are
displayed.
3 To add a class map, click Add .
4 Enter the parameters.
–
Policy Name — Select the policy to which the class map is being
added.
