Cable routing

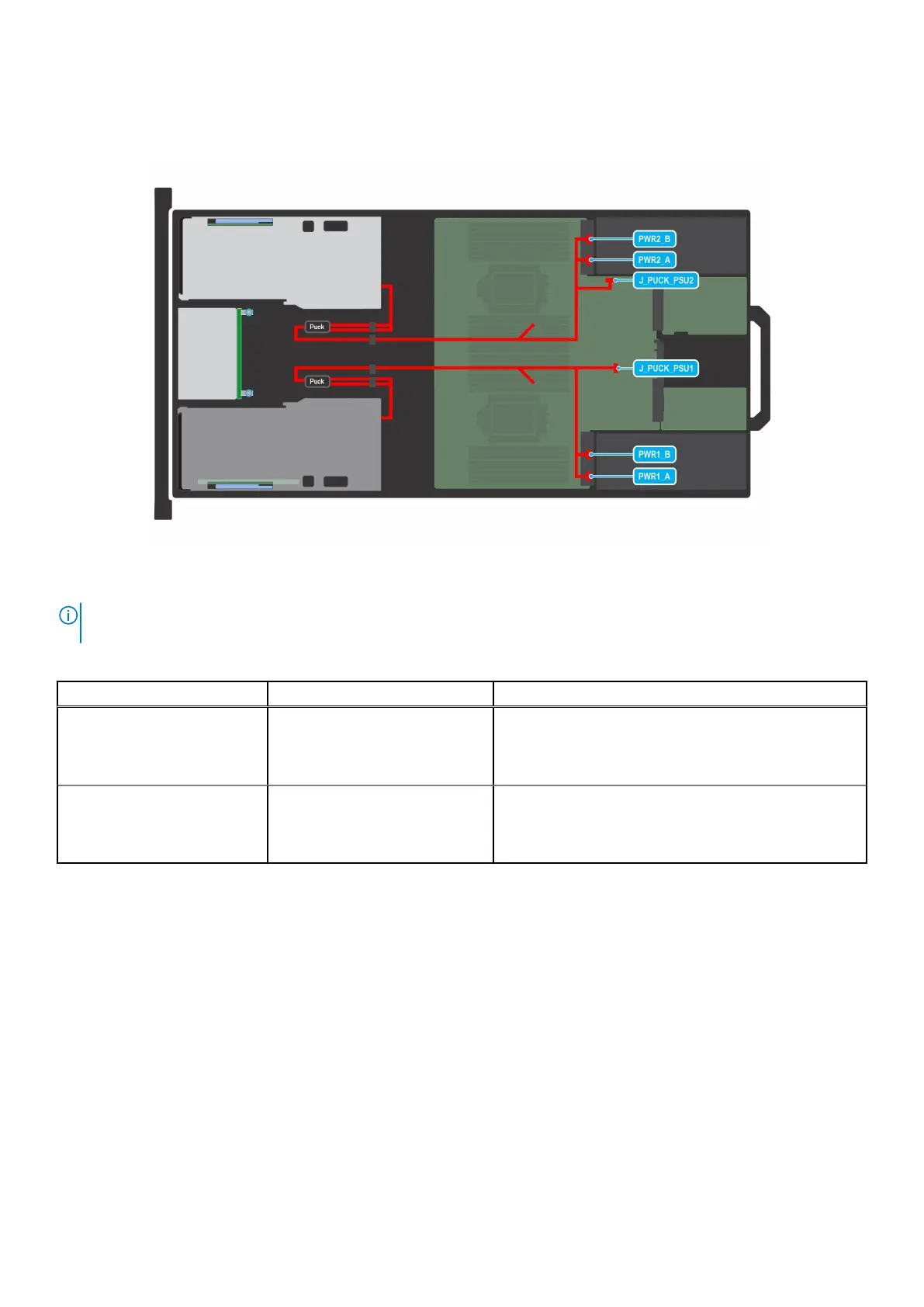

Figure 51. Cabling for GPU Power
NOTE:
Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 63. Cabling for GPU Power
Order From To
1. PWR1_A ( system board PSU1) /
PWR1_B (system board PSU1)/
J_PUCK_PSU1 (System board
PSU 1 signal connector)
Puck (GPU power)
2. PWR2_A ( system board PSU2) /
PWR2_B (system board PSU2)/
J_PUCK_PSU2 (System board
PSU 2 signal connector)
Puck (GPU power)
88 Installing and removing system components
