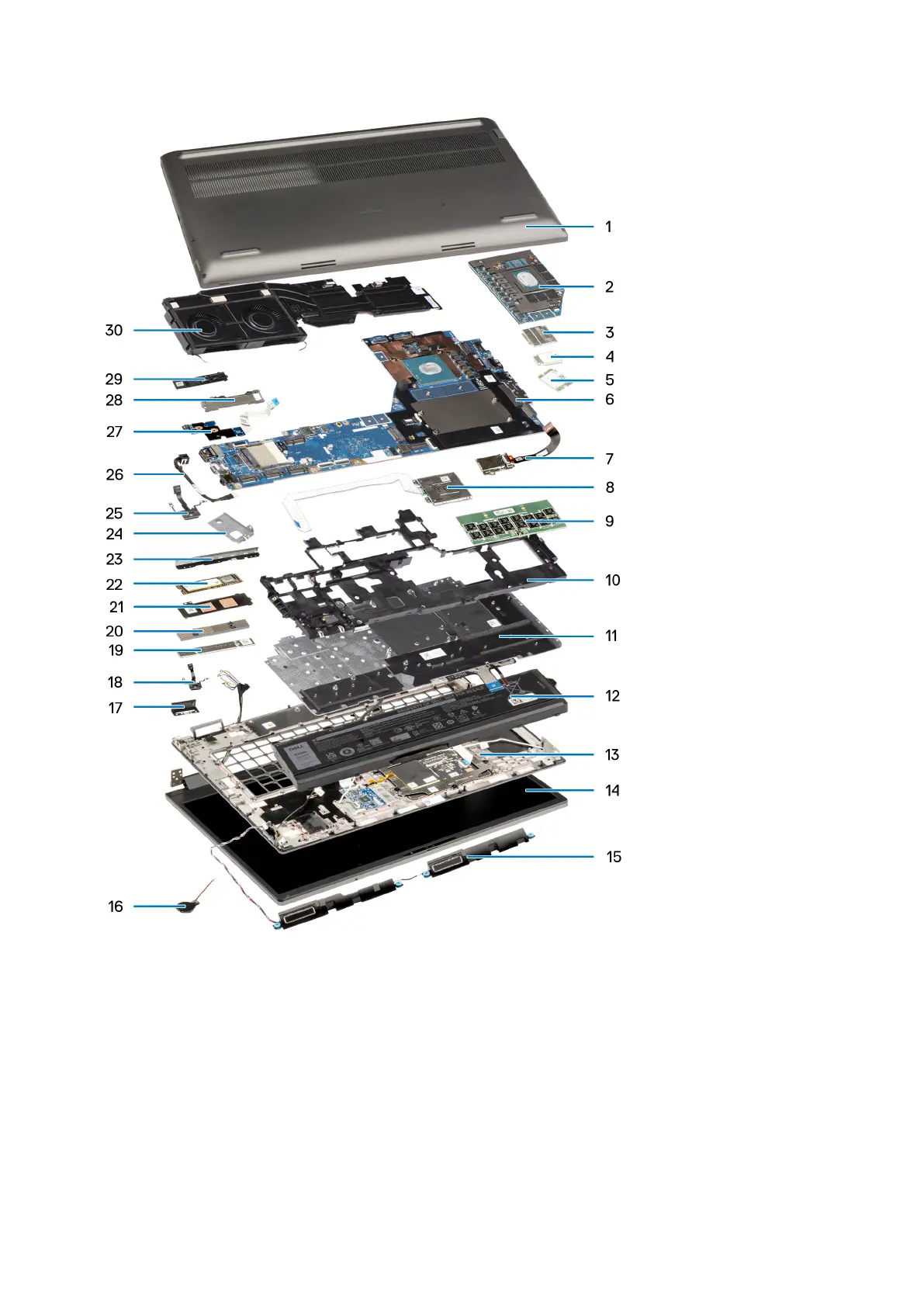

1. Base cover 2. Discrete GPU
3. WWAN card 4. WWAN cover
5. WLAN card 6. System board
7. SD card reader 8. Smart card reader
9. CAMM module 10. Inner frame
11. Keyboard 12. Battery
13. Palm rest 14. Display assembly
15. Speakers 16. Coin-cell battery
17. Left dummy fin 18. Power button
19. CAMM memory bracket 20. CAMM connector module
21. Solid-state drive shield 22. Solid-state drive
23. Dummy fin 24.
