About this task

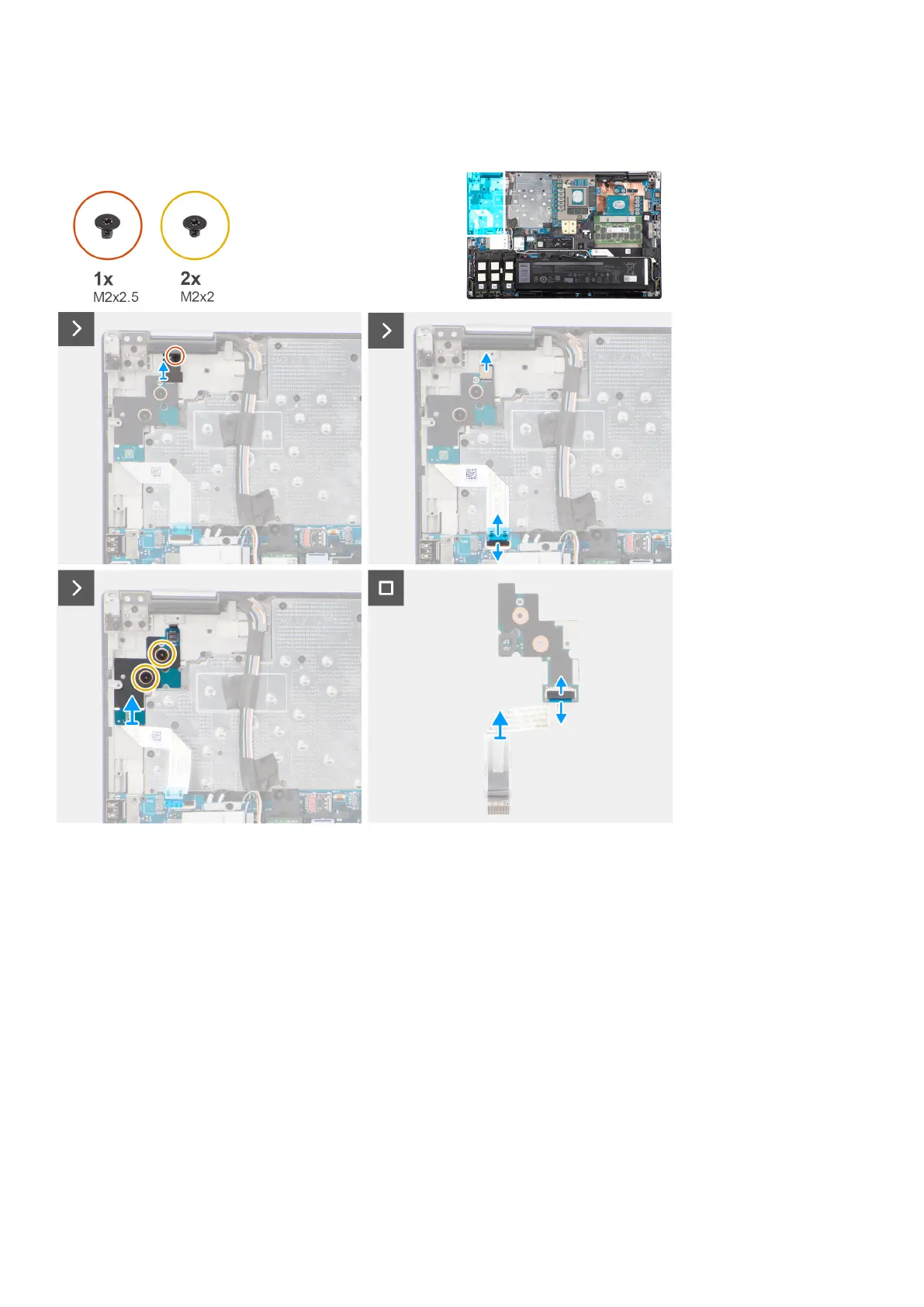

The figure indicates the location of the power button board and provides a visual representation of the removal procedure.
Steps
1. Remove the (M2x3) screw that secures the power button board to the computer.
2. Remove the two (M2x2) screws that secure the power button board to the computer.
3. Remove the power button board with the power button board FFC from the computer.
4. Disconnect the power button board FFC from the power button board.
Installing the power button board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the power button board and provides a visual representation of the installation procedure.
