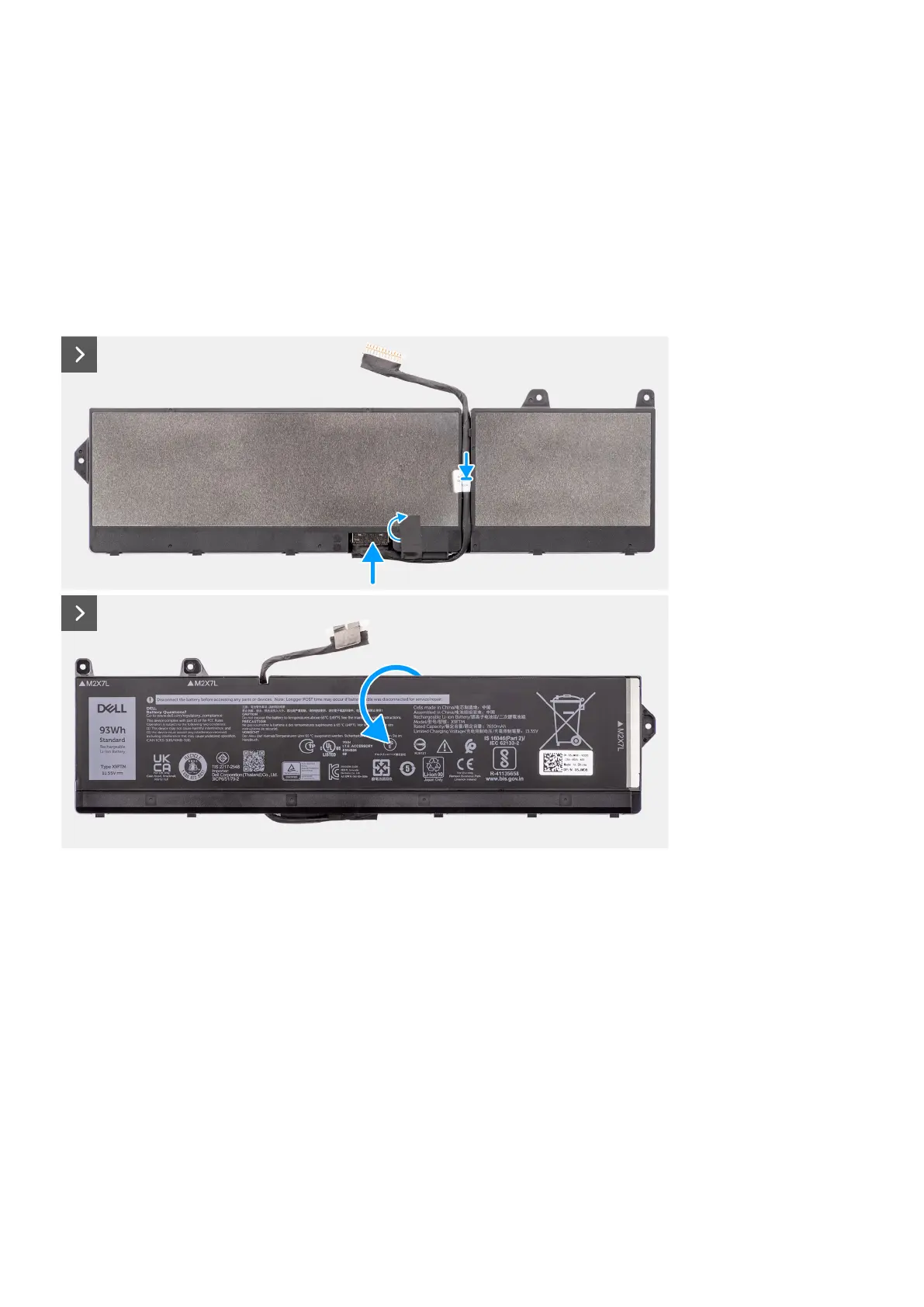

4. Unroute the battery cable and disconnect it from its connector on the battery.
5. Lift to remove the battery cable from the battery.
Installing the battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the battery and provides a visual representation of the installation procedure.
24 Removing and installing components
