4. Remove the secondary solid-state drive.
5. Remove the battery.
6. Remove the inner frame.
About this task

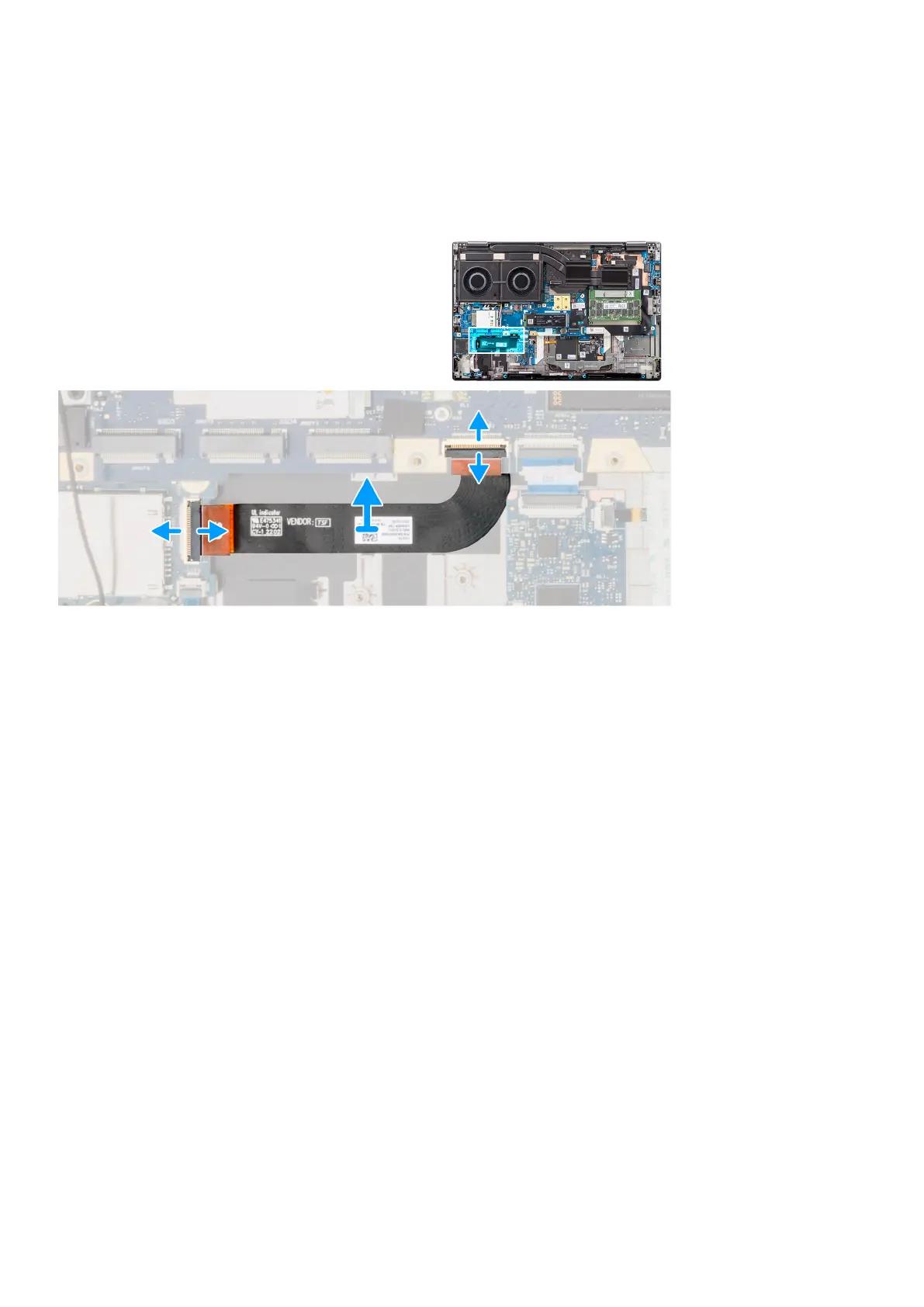

The figure indicates the location of the SD card reader FPC and provides a visual representation of the removal procedure.
Steps
1. Disconnect the SD card reader FPC from its connector on the SD card reader and system board.
2. Peel to remove the SD card reader FPC from the computer chassis.
Installing SD card reader FPC
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The figure indicates the location of the SD card reader FPC and provides a visual representation of the installation procedure.
Removing and installing components
67
