Steps

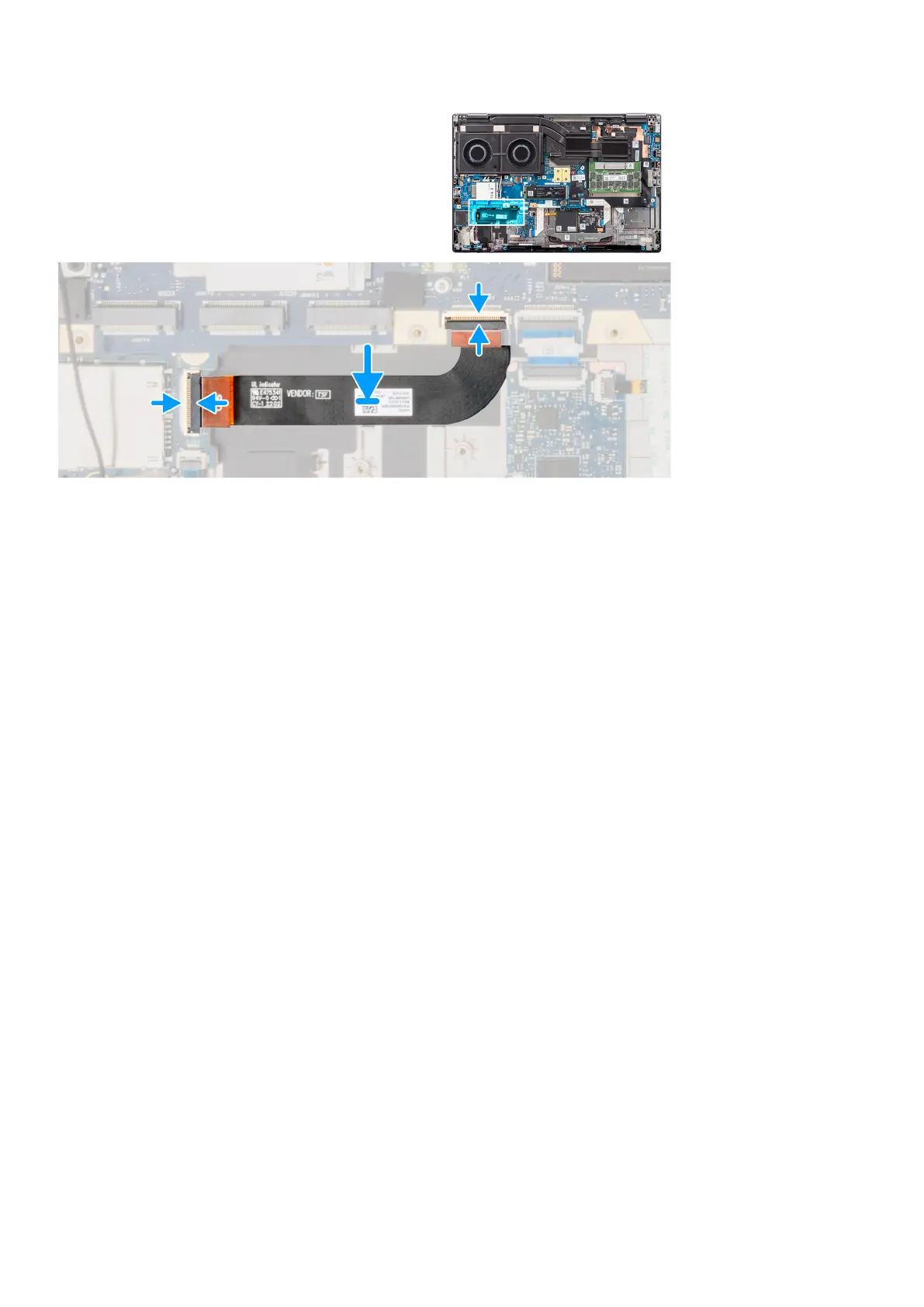

1. Adhere the SD card reader FPC into its slot on the computer chassis.
2. Connect the SD card reader FPC to its connectors on the SD card reader and system board.
Next steps
1. Install the inner frame.
2. Install the battery.
3. Install the secondary solid-state drive.
4. Install the primary solid-state drive.
5. Install the base cover.
6. Follow the procedure in after working inside your computer.
System board
Removing the system board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the SIM card.
4. Remove the battery.
5. Remove the CAMM module or memory module.
6. Remove the interposer board module.
7. Remove the WLAN card.
8. Remove the WWAN card.
9. Remove the primary solid-state drive.
10. Remove the secondary solid-state drive.
11. Remove the heat-sink for discrete graphics.
12. Remove the inner frame.
About this task
The figure indicates the location of the system board and provides a visual representation of the removal procedure.
68
Removing and installing components
