Steps

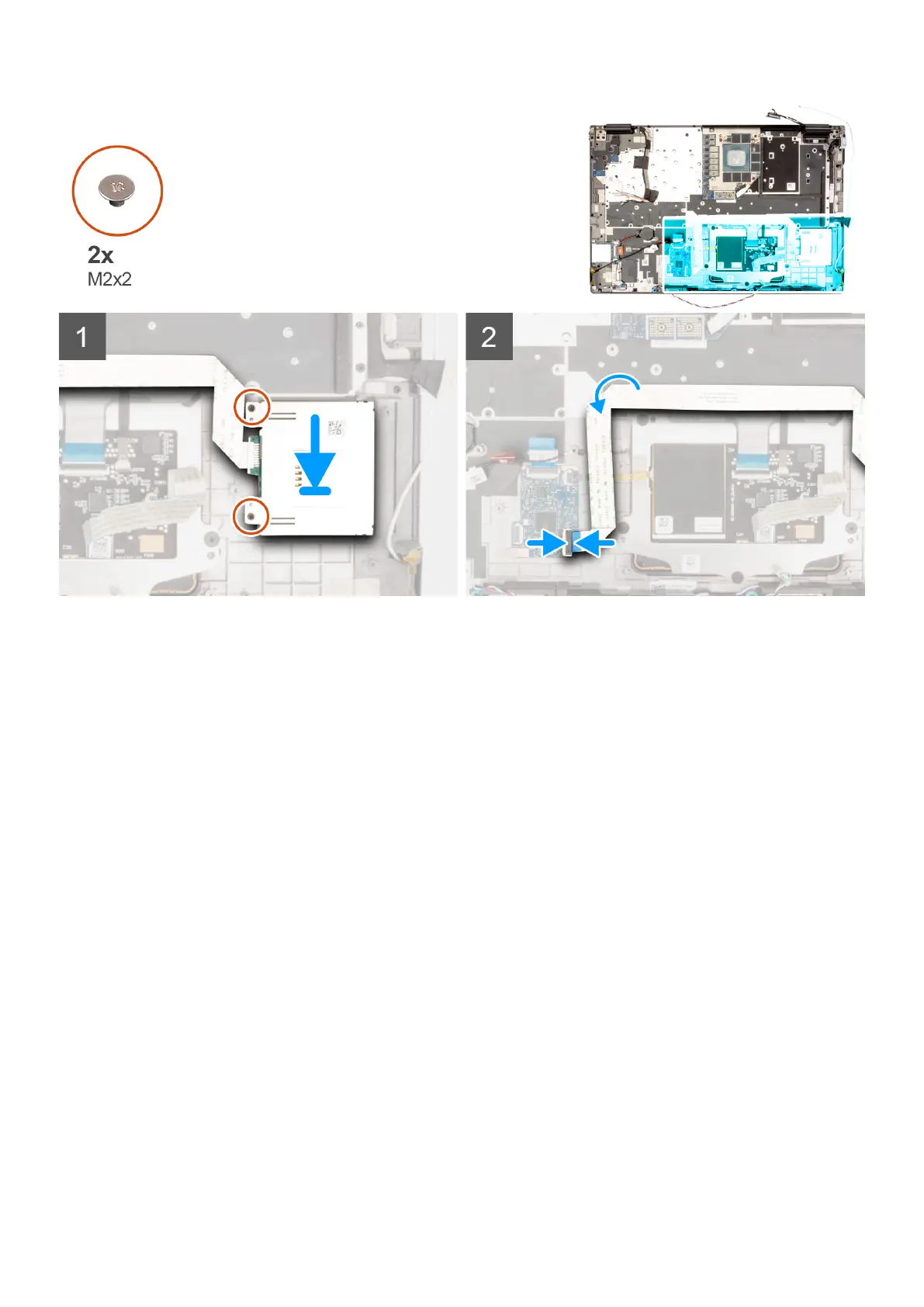

1. Align and place the smart-card reader into its slot on the computer.
2. Replace the two (M2x2) screws to secure the smart-card reader in place.
3. Adhere the smart-card reader FFC to the touchpad.
4. Connect the smart-card reader FFC to the connector on the USH daughter board.
Next steps
1. Install the inner frame.
2. Install the heat-sink for discrete graphics.
3. Install the secondary solid-state drive.
4. Install the primary solid-state drive.
5. Install the WWAN card.
6. Install the interposer board module.
7. Install the CAMM module or memory module.
8. Install the battery.
9. Install the SIM card.
10. Install the base cover.
11. Follow the procedure in after working inside your computer.
Keyboard
Removing the keyboard
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
Removing and installing components
85
