Installing SD card reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

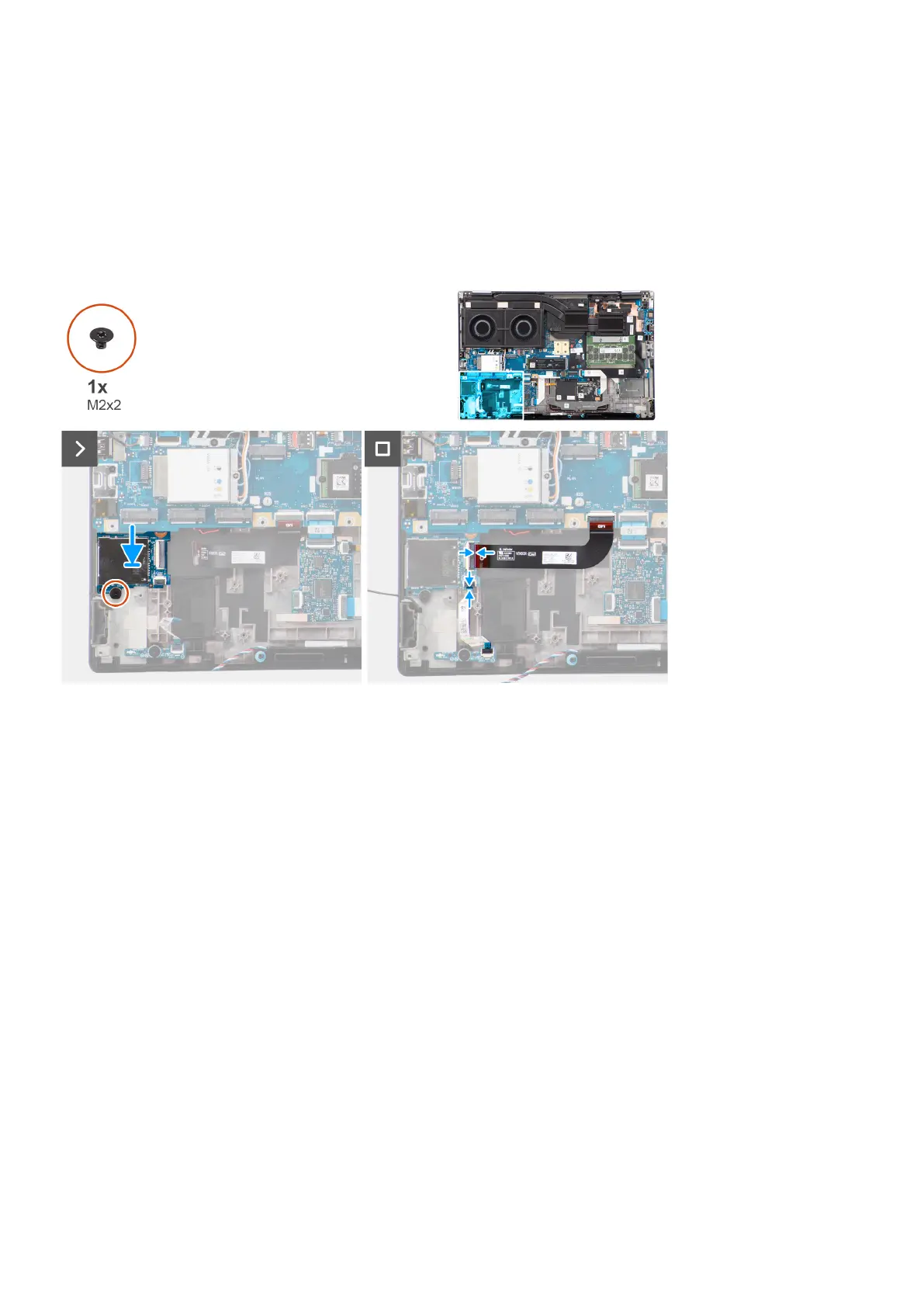

The figure indicates the location of the SD card reader and provides a visual representation of the installation procedure.
Steps
1. Align and place the SD card reader with the FPC into its slot on the computer chassis.
2. Replace the (M2x2) screw to secure the SD card reader to the computer chassis.
3. Connect the LED board FFC and SD card reader FPC to the SD card reader.
Next steps
1. Install the inner frame.
2. Install the battery.
3. Install the secondary solid-state drive.
4. Install the primary solid-state drive.
5. Install the base cover.
6. Follow the procedure in after working inside your computer.
SD card reader FPC
Removing SD card reader FPC
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the primary solid-state drive.
66
Removing and installing components
