Installing the GPU power cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

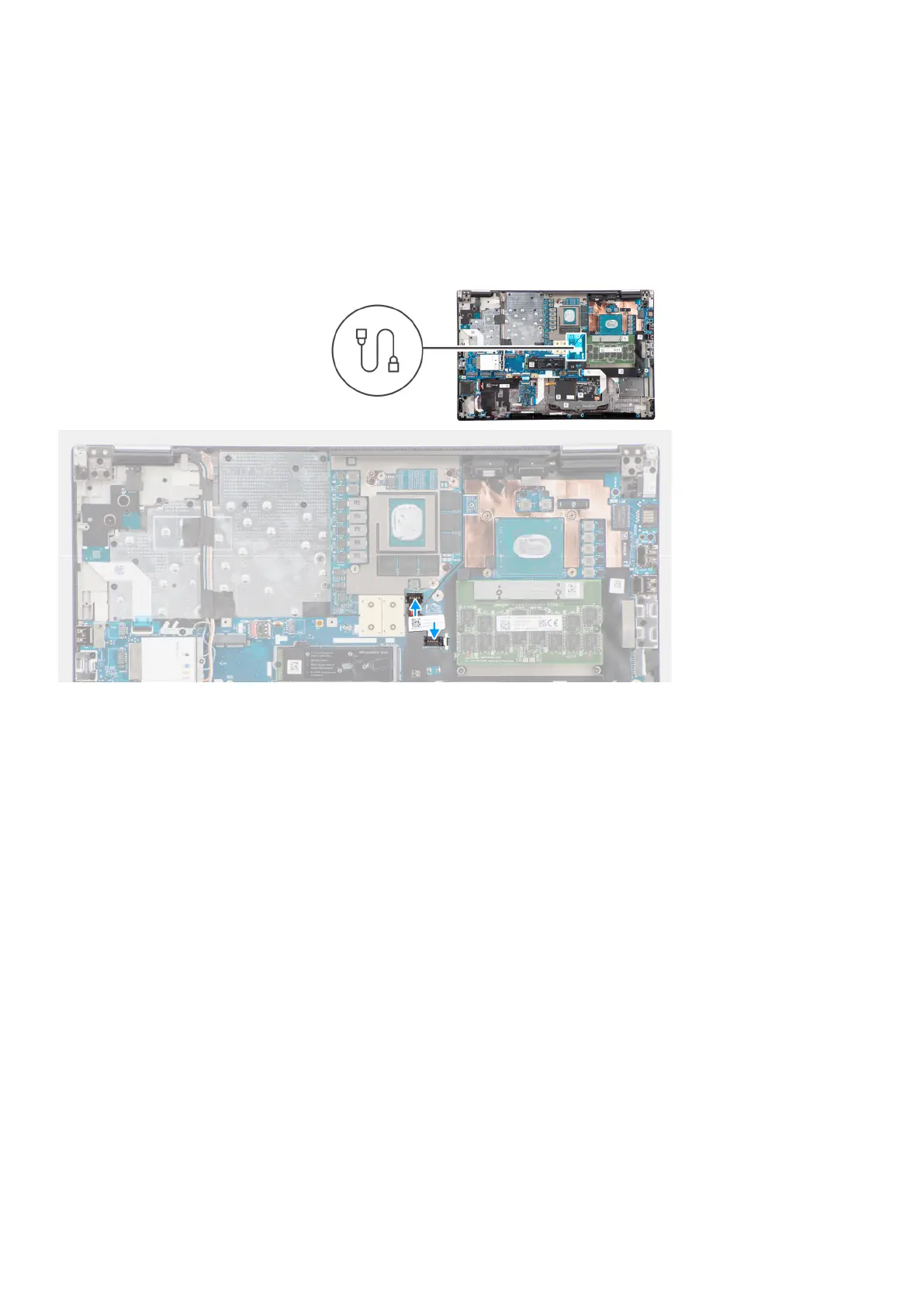

The figure indicates the location of the GPU power cable and provides a visual representation of the installation procedure.
Steps
1. Adhere the GPU power cable into its slot on the computer.
2. Connect the GPU power cable from the connector on the system board.
3. Slide the GPU power cable connector into its slot to connect the GPU power cable to the GPU card.
4. Lock the GPU power cable connector to secure the GPU card.
Next steps
1. Install the heat-sink for discrete graphics.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
Power button board
Removing the power button board
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the heat-sink for discrete graphics.
Removing and installing components
55
