GPU card
Removing the GPU card
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the base cover.
3. Remove the heat-sink for discrete graphics.
About this task

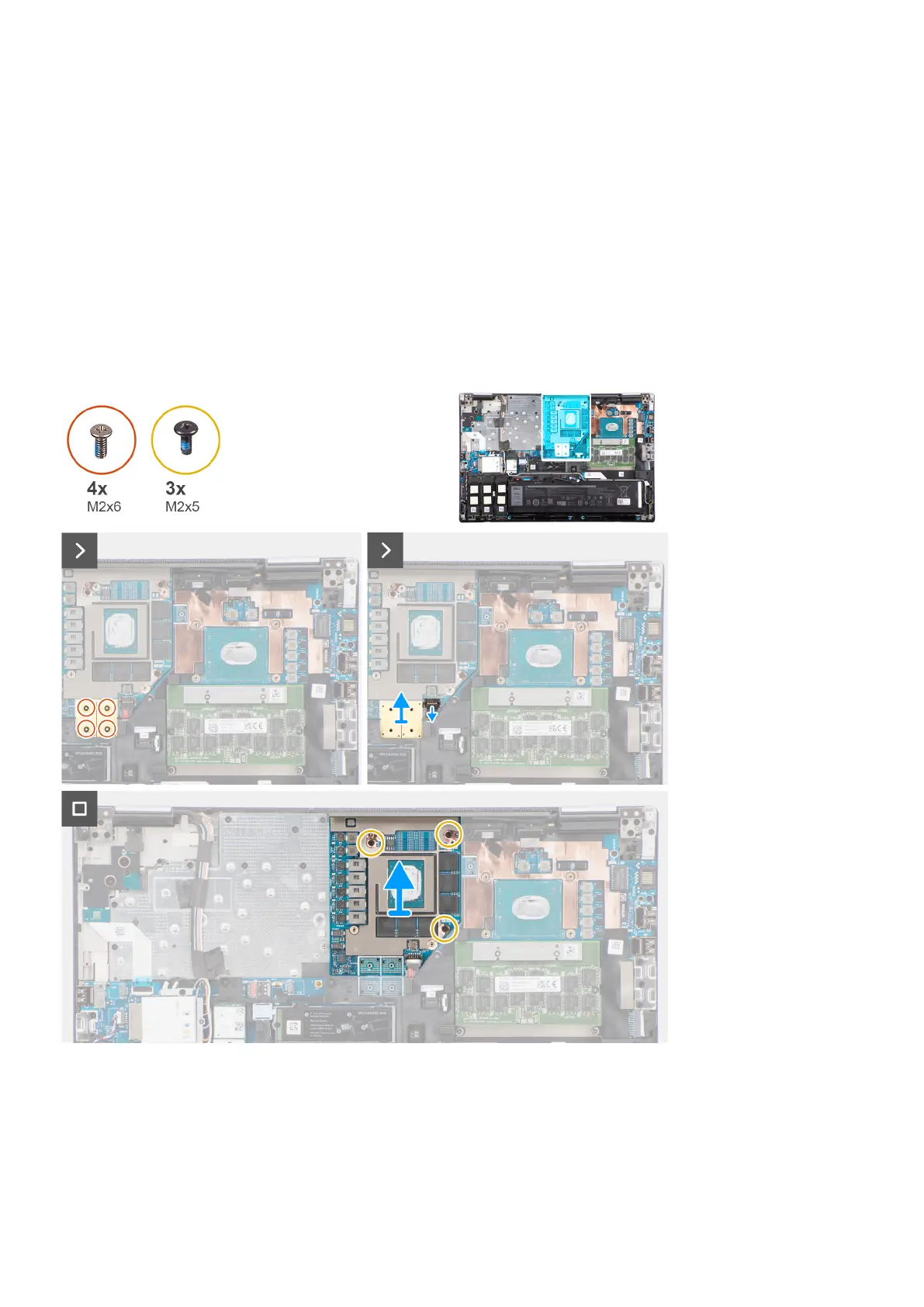

The figure indicates the location of the GPU card and provides a visual representation of the removal procedure.
Steps
1. Carefully pry up the outside-end of the GPU power cable connector head to unlock the GPU power cable connector from
the GPU card.
2. Slightly slide the GPU power cable connector outwards to disconnect the GPU power cable from the GPU card.
3. Remove the four (M2x6) screws that secure the PCB beam connectors on the system board.
52
Removing and installing components
