Steps

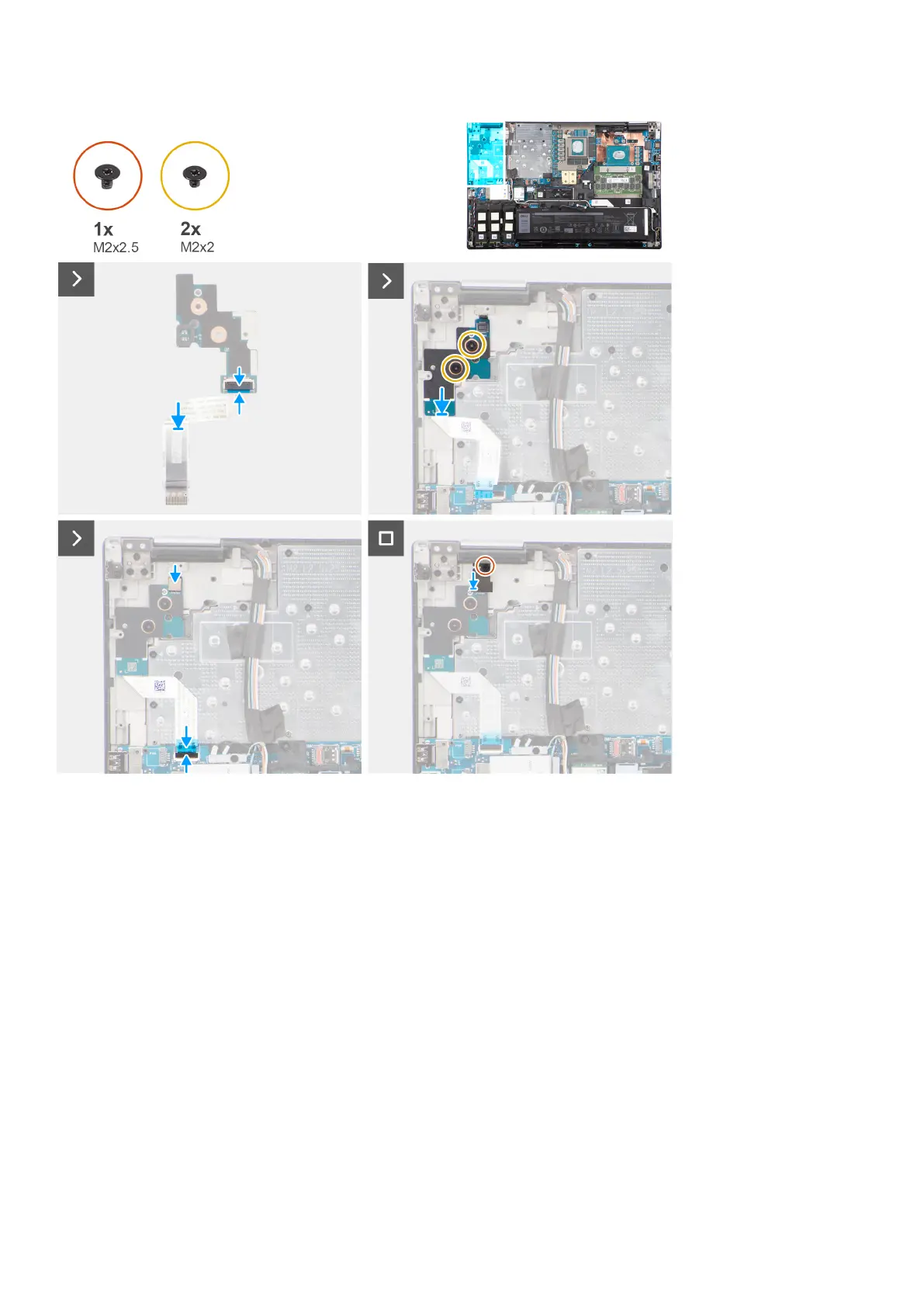

1. Connect the power button board FFC to the power button board.
2. Align and place the power button board with the power button FFC into its slot on the computer.
3. Replace the two (M2x2) screws to secure the power button board to the computer.
4. Replace the (M2x3) screw to secure the power button board to the computer.
5. Connect the power button board FFC to the connector on the system board.
Next steps
1. Install the heat-sink for discrete graphics.
2. Install the base cover.
3. Follow the procedure in after working inside your computer.
Removing and installing components
57
