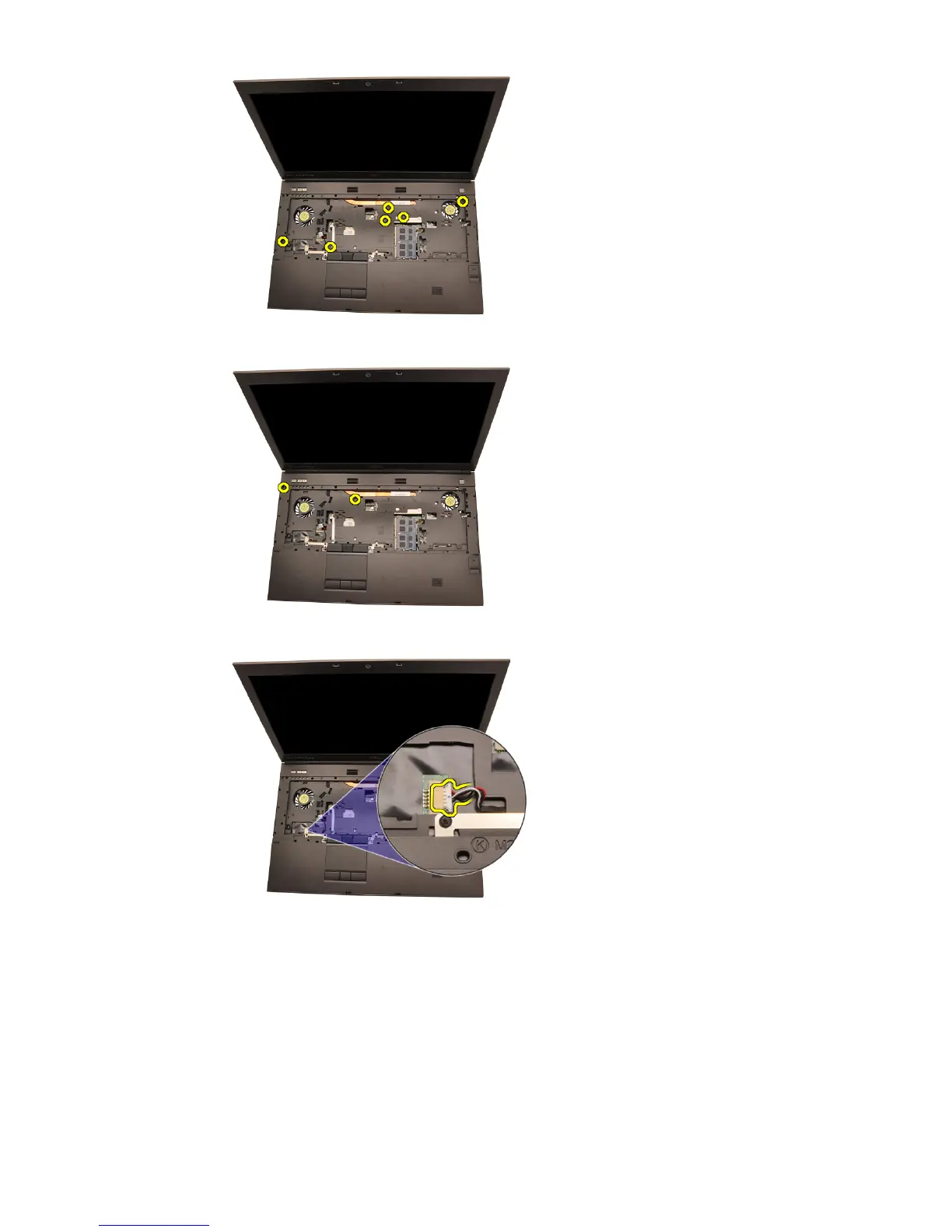

11. Loosen the captive screws.

12. Disconnect the speaker cable.

13. Disconnect the media board cable.

52
