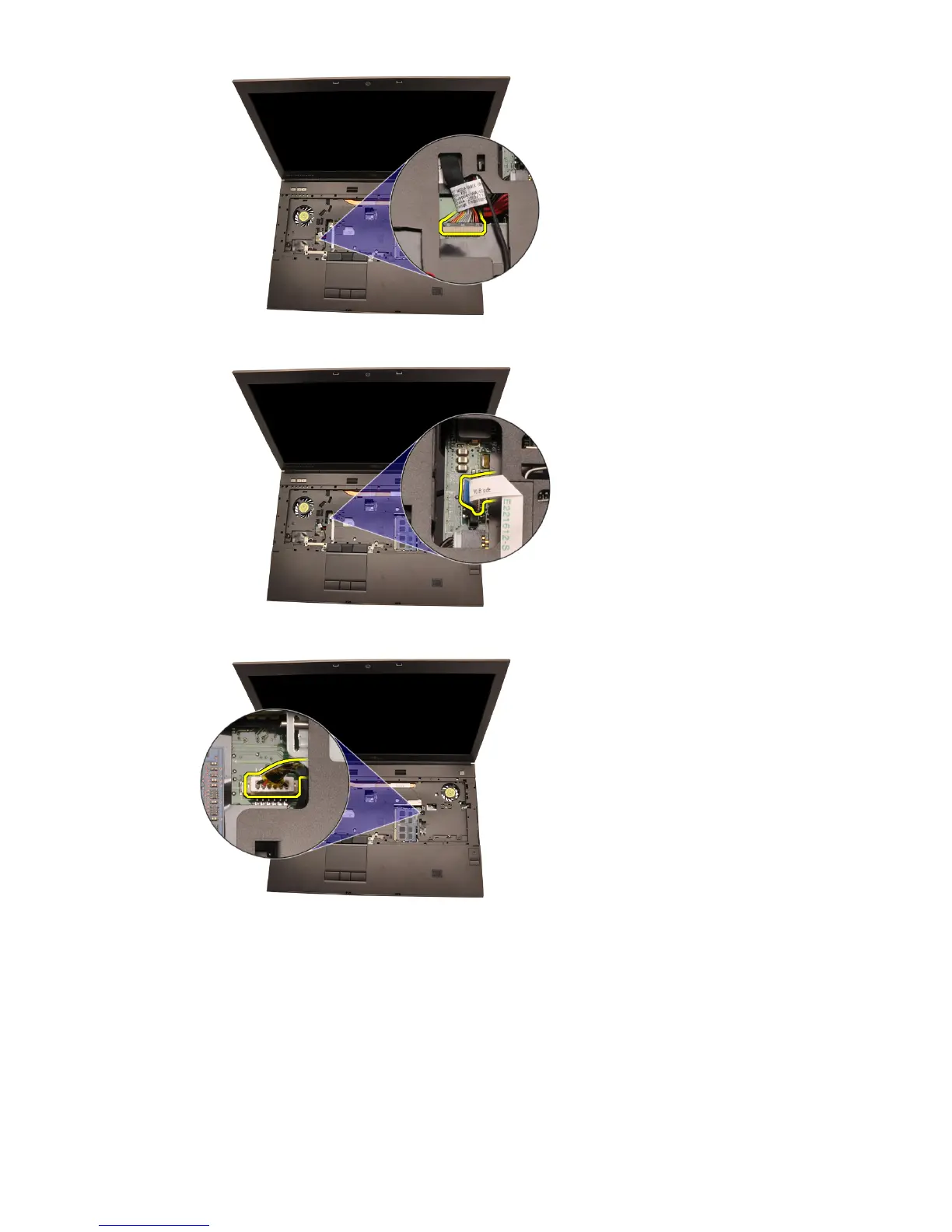

14. Disconnect the touchpad cable.

15. Disconnect the Radio Frequency Identification (RFID) cable.

16. Disconnect the fingerprint reader cable.

53

Table of Contents

Notes, Cautions, and Warnings2
- Table of Contents3
1 Working on Your Computer9
- Before Working Inside Your Computer9
- Recommended Tools10
- Turning off Your Computer11
- After Working Inside Your Computer11
2 Secure Digital (SD) Card13
- Removing the Secure Digital (SD) Card13
- Installing the Secure Digital (SD) Card13
3 Expresscard15
- Removing the Expresscard15
- Installing the Expresscard15
4 Battery17
- Removing the Battery17
- Installing the Battery17
5 Subscriber Identity Module (SIM) Card19
- Removing the Subscriber Identity Module (SIM )Card19
- Installing the Subscriber Identity Module (SIM )Card20
6 Bluetooth Card21
- Removing the Bluetooth Card21
- Installing the Bluetooth Card22
7 Base Cover23
- Removing the Base Cover23
- Installing the Base Cover24
8 Keyboard Trim25
- Removing the Keyboard Trim25
- Installing the Keyboard Trim26
9 Keyboard27
- Removing the Keyboard27
- Installing the Keyboard29
10 Optical Drive31
- Removing the Optical Drive31
- Installing the Optical Drive32
11 Primary Hard Drive33
- Removing the Primary Hard Drive33
- Installing the Primary Hard Drive35
12 Secondary Hard Drive37
- Removing the Secondary Hard Drive37
- Installing the Secondary Hard Drive38
13 Wireless Local Area Network (WLAN) Card39
- Removing Wireless Local Area Network (WLAN) Card39
- Installing the Wireless Local Area Network (WLAN) Card40
14 Wireless Wide Area Network (WWAN) Card41
- Removing the Wireless Wide Area Network (WWAN) Card41
- Installing the Wireless Wide Area Network (WWAN) Card42
15 Primary Memory43
- Removing the Primary Memory43
- Installing the Primary Memory44
16 Secondary Memory45
- Removing the Secondary Memory45
- Installing the Secondary Memory46
17 CPU Fan47
- Removing the CPU Fan47
- Installing the CPU Fan48
18 Coin-Cell Battery49
- Removing the Coin-Cell Battery49
- Installing the Coin-Cell Battery50
19 Palm Rest51
- Removing the Palm Rest51
- Installing the Palm Rest56
20 CPU and Heatsink57
- Removing the CPU Heatsink57
- Installing the CPU Heatsink58
21 Processor59
- Removing the Processor59
- Installing the Processor60
22 Graphics Card Heatsink61
- Removing the Graphics Card Heatsink61
- Installing the Graphics Card Heatsink64
23 Graphics Card65
- Removing the Graphics Card65
- Installing the Graphics Card66
24 Expresscard Module67
- Removing the Expresscard Module67
- Installing the Expresscard Module68
25 Input/Output Board69
- Removing the Input/Output Board69
- Installing the Input/Output Board71
26 DC-In Jack73
- Removing the DC-In Jack73
- Installing the DC-In Jack75
27 Display Assembly77
- Removing the Display Assembly77
- Installing the Display Assembly81
28 System Board83
- Removing the System Board83
- Installing the System Board86
29 Touchscreen Display Bezel87
- Removing the Touchscreen Display Bezel87
- Installing the Touchscreen Display Bezel89
30 Touchscreen Display Panel91
- Removing the Touchscreen Display Panel91
- Installing the Touchscreen Display Panel94
31 Display Bezel95
- Removing the Display Bezel95
- Installing the Display Bezel96
32 Display Panel97
- Removing the Display Panel97
- Installing the Display Panel99
33 Camera101
- Removing the Camera101
- Installing the Camera102
34 Display Hinge Cap Tower103
- Removing the Display Hinge Cap Tower103
- Installing the Display Hinge Cap Tower105
35 Low-Voltage Differential Signaling (LVDS) Camera Cable107
- Removing the Low-Voltage Differential Signaling (LVDS) Camera Cable107
- Installing the Low-Voltage Differential Signaling (LVDS) Camera Cable109
36 Specifications111
- Technical Specifications111
37 System Setup117
- System Setup Overview117
- Entering System Setup117
- System Setup Menu Options117
38 Diagnostics131
- Device Status Lights131
- Battery Status Lights131
39 Contacting Dell135
