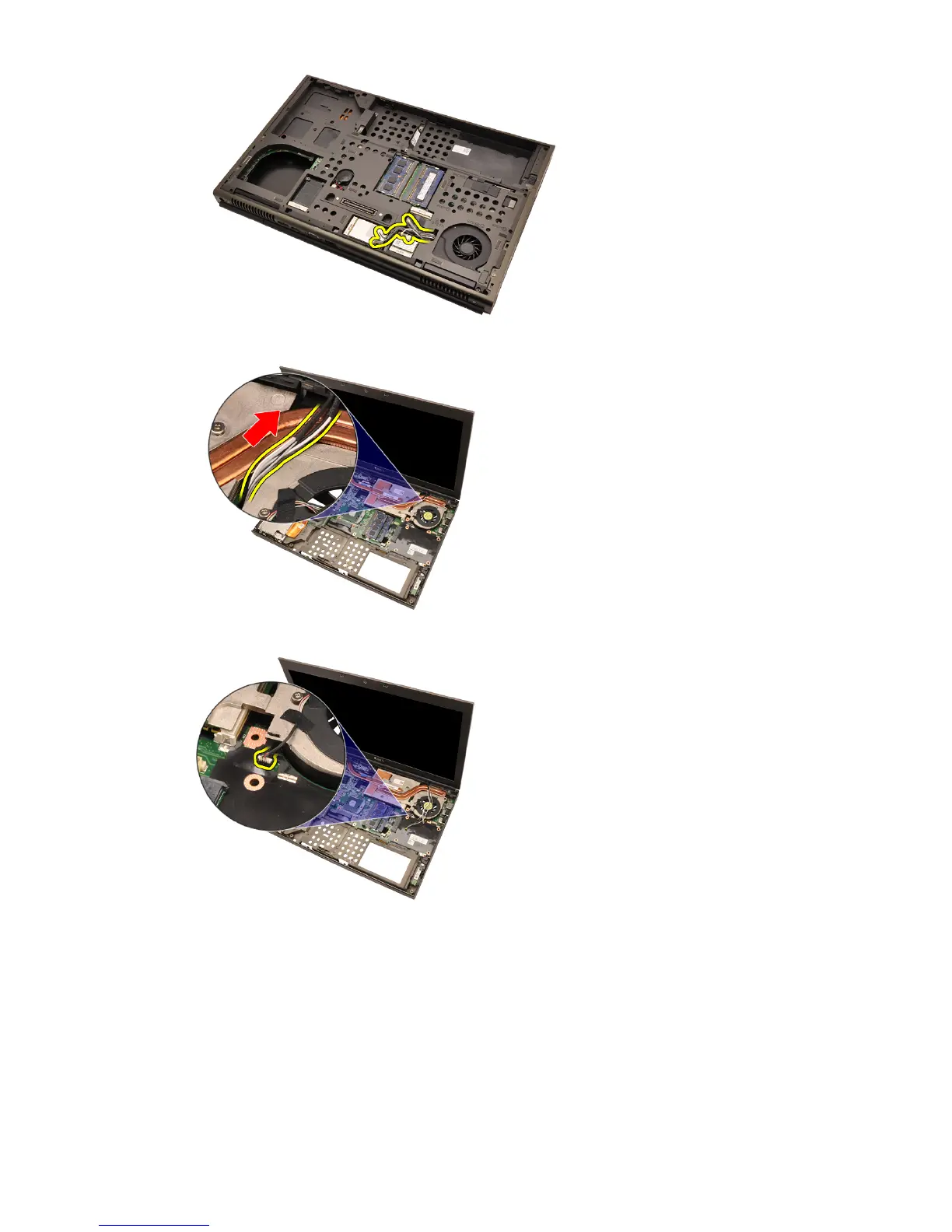

14. Pull the antennas through the opening to the top of the computer.

15. Disconnect the graphics card fan cable.

16. Remove the screw securing the graphics card heatsink in place.

62
