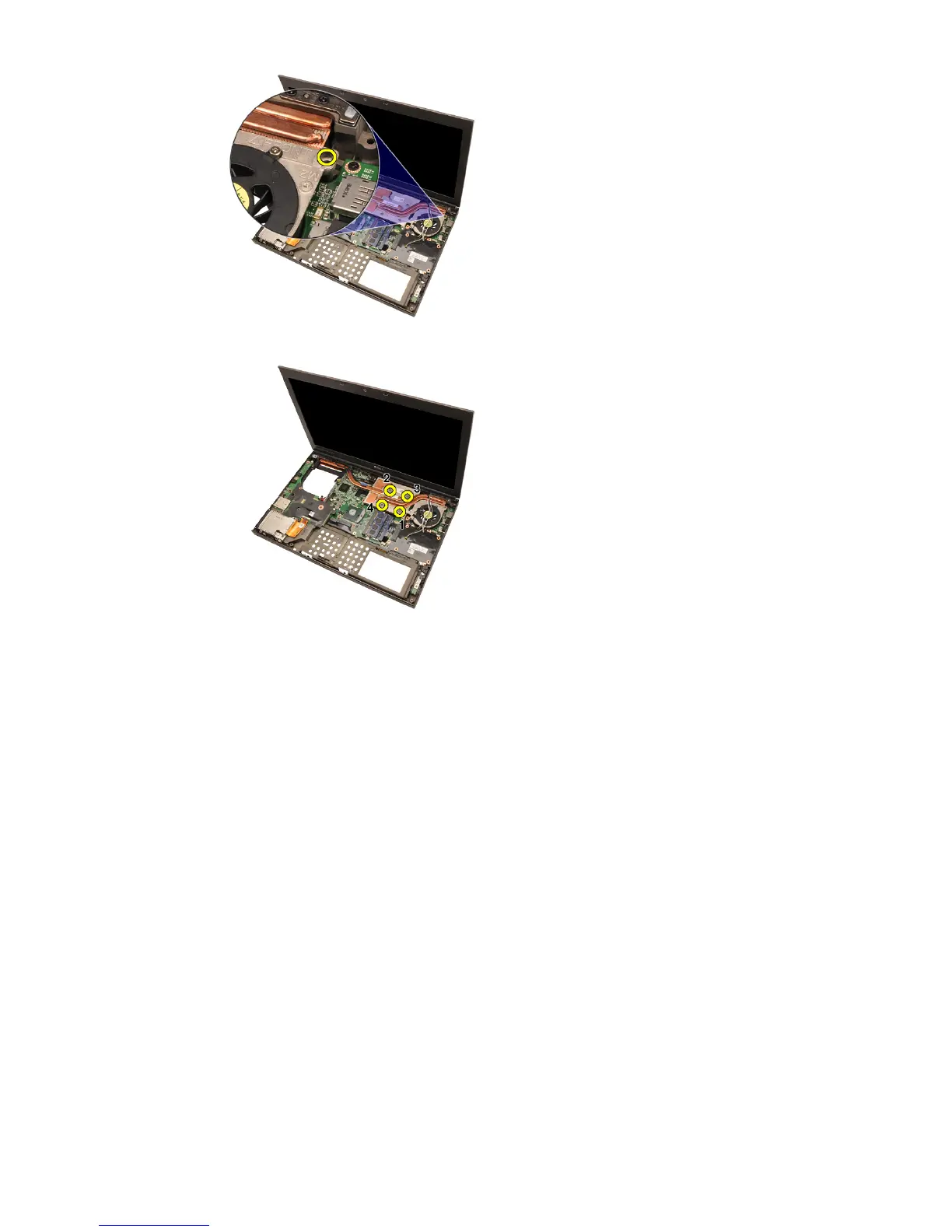

17. Loosen the captive screws (1 > 2 > 3 > 4) on the heatsink.

18. Lift up the graphics card heatsink and remove from the computer.

63
